ALLIED VISION TECH. MANTA G201B ASG Smart Industrial Camera

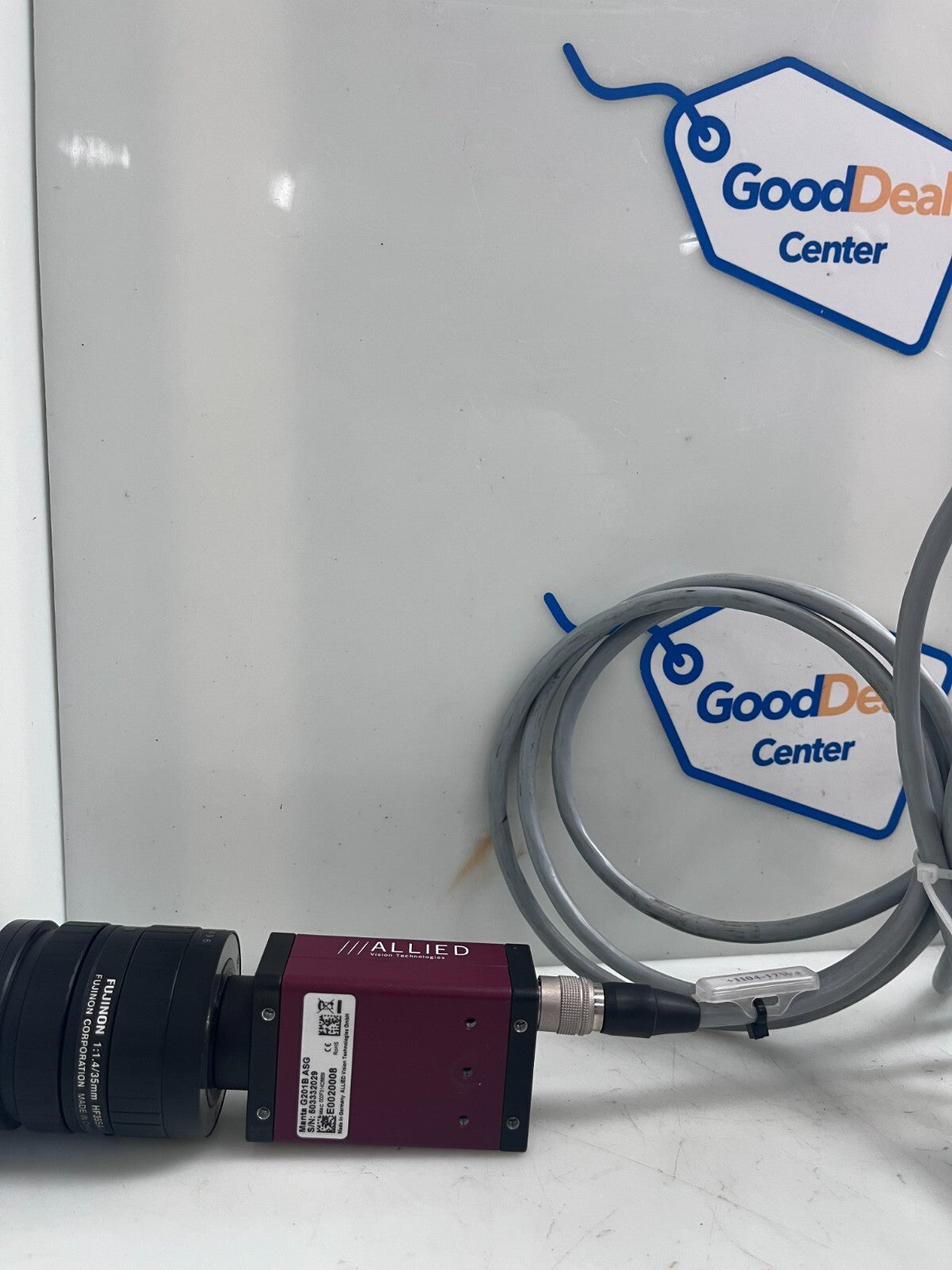

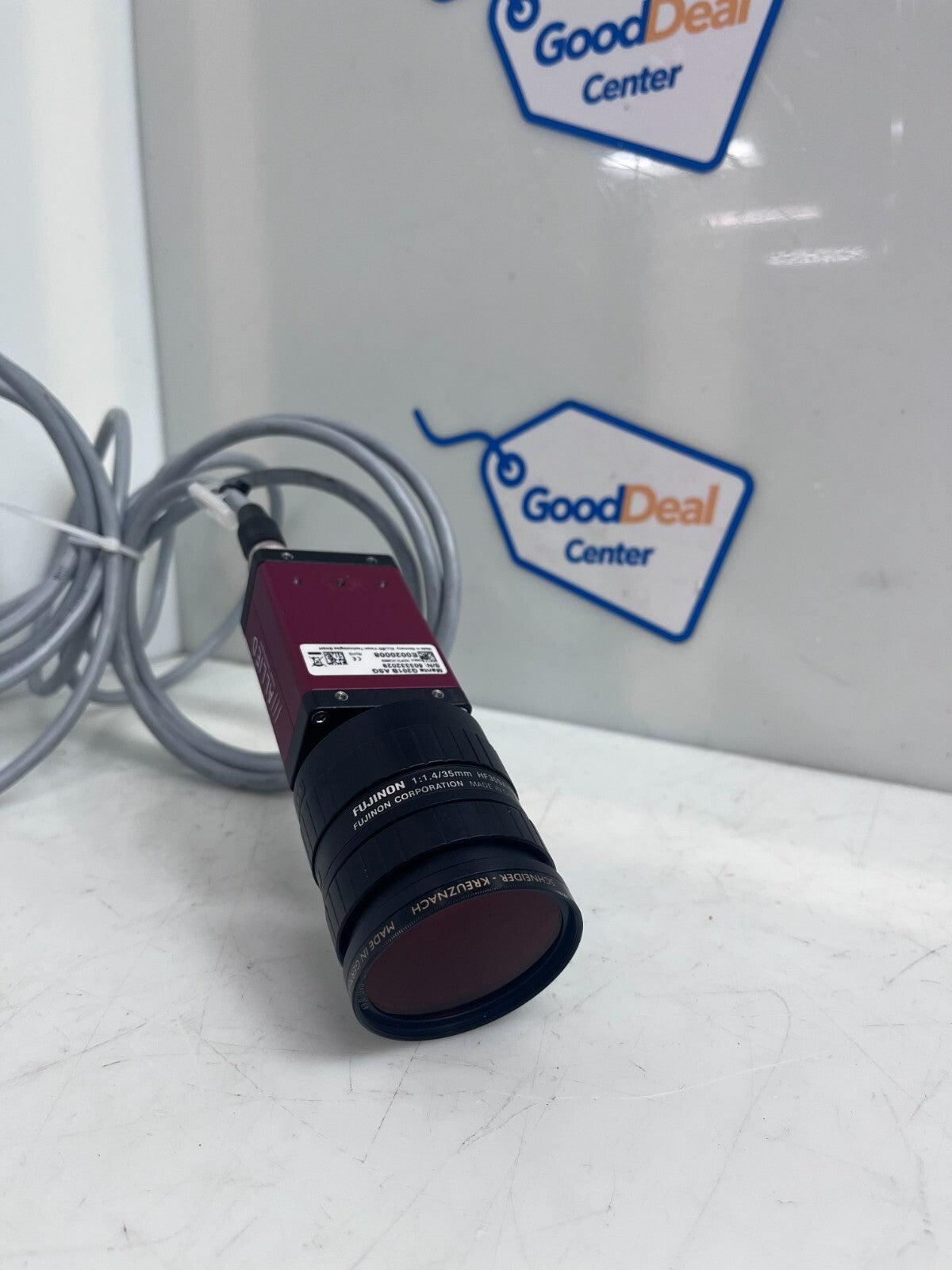

ALLIED VISION-MANTA G201B ASG Smart Industrial Camera w/Cable & FUJINON HF35SA-1
$531.55
w/Cable
E0020008
| Interface | IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE) optional |
|---|---|
| Resolution | 1624 (H) × 1234 (V) |
| Sensor | Sony ICX274 |
| Sensor type | CCD Progressive |
| Sensor size | Type 1/1.8 |
| Pixel size | 4.4 µm × 4.4 µm |
| Shutter mode | GS (Global shutter) |
| Lens mounts (available) | C-Mount, CS-Mount |
| Max. frame rate at full resolution | 14 fps |
| ADC | 12 Bit |
| Image buffer (RAM) | 32 MByte |
Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for monochrome models measured at full resolution without optical filter. Contact Sales or AE for more information.
| Quantum efficiency at 529 nm | 48 % |
|---|---|
| Temporal dark noise | 8.9 eˉ |
| Saturation capacity | 6900 eˉ |
| Dynamic range | 57.3 dB |
| Absolute sensitivity threshold | 19.7 eˉ |
| Bit depth | 8-bit or 12-bit |
|---|---|
| Monochrome pixel formats | Mono8, Mono12, Mono12Packed |
| YUV color pixel formats | YUV411Packed, YUV422Packed, YUV444Packed |
| RGB color pixel formats | RGB8Packed, BGR8Packed, RGBA8Packed, BGRA8Packed |
| Raw color pixel formats (Bayer) | BayerRG8, BayerRG12Packed, BayerRG12 |
| Power requirements (DC) | 8 to 30 VDC AUX or IEEE 802.3af PoE |
|---|---|
| Power consumption | External power: 2.6 W at 12 VDC | Power over Ethernet: 3.2 W |
| Operating temperature | +5 °C to +45 °C ambient (without condensation) |
| Mass | 200 g; 210 g (PoE) |
| Body dimensions (L × W × H in mm) | 86.3 × 44 × 29 (including connectors) |
Image control: Auto
- Auto exposure
- Auto gain
- Auto white balance (color models)
Image control: Other
- Binning
- Black level
- Color transformation (incl. hue, saturation; color models)
- Decimation
- Gamma
- LUT (look-up table)
- Reverse X
- ROI (region of interest)
& FUJINON HF35SA-1
HF35SA-1 - High-resolution design, providing support for up to 5 megapixel camera resolution. Wide-aperture (F1.4) design achieves clear images under low light intensity. Enhanced image recognition accuracy achieved by reduction of distortion and improvement of illumination uniformity. Robust enclosure resistant to vibrations and shocks. Equipped with locking knobs for the iris and the focus.
& SHNEIDER-Kreuznach
Red Filter Lens 49,0 090 E
