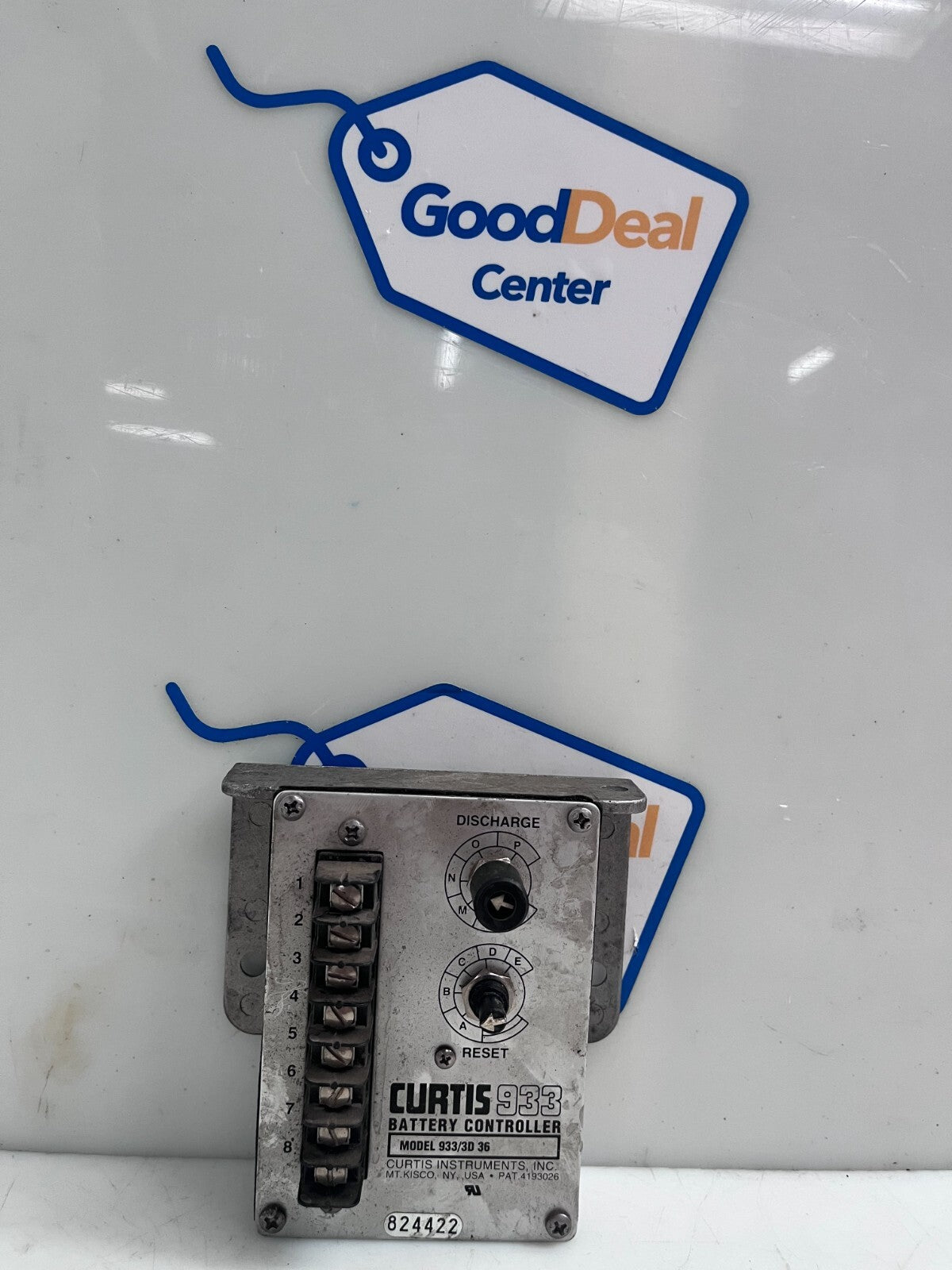

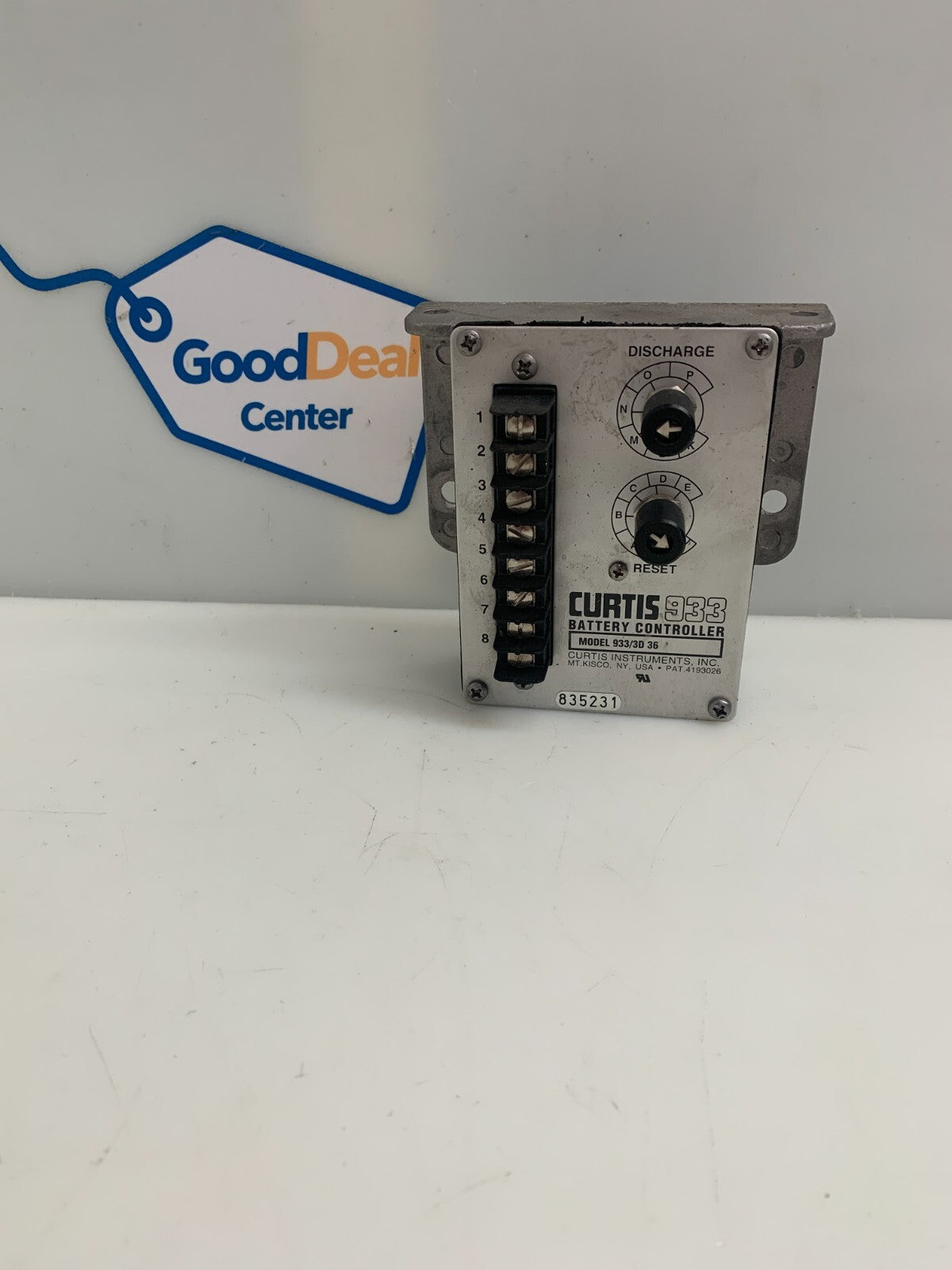

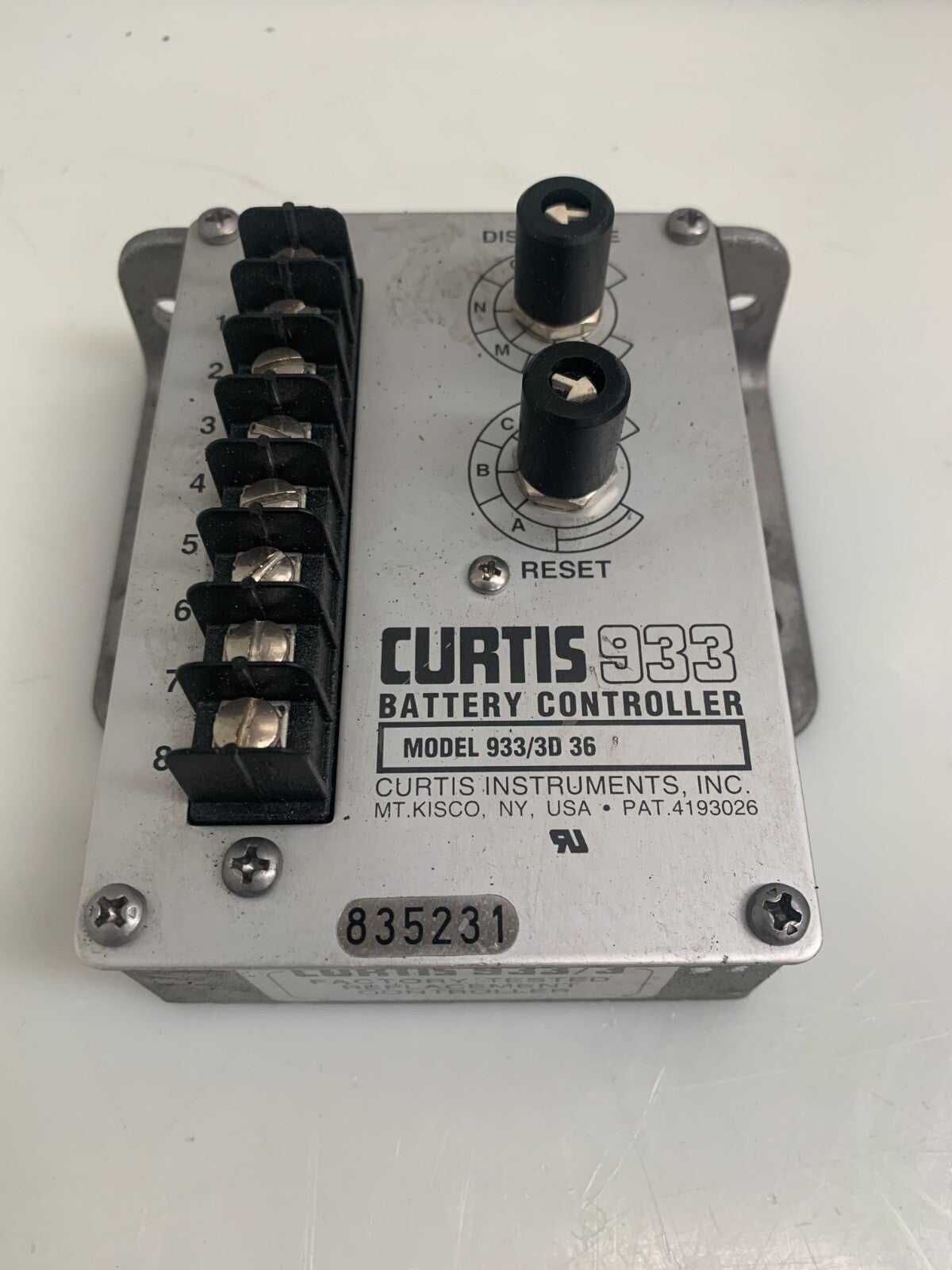

CURTIS INSTRUMENTS 933 Battery Controller 933/3D36 9333D36
  • CURTIS INSTRUMENTS 933 Battery Controller 933/3D36 9333D36
  • CURTIS INSTRUMENTS 933 Battery Controller 933/3D36 9333D36
  • CURTIS INSTRUMENTS 933 Battery Controller 933/3D36 9333D36
  • CURTIS INSTRUMENTS 933 Battery Controller 933/3D36 9333D36
  • CURTIS INSTRUMENTS 933 Battery Controller 933/3D36 9333D36
  • CURTIS INSTRUMENTS 933 Battery Controller 933/3D36 9333D36
CURTIS INSTRUMENTS 933 Battery Controller 933/3D36 9333D36

CURTIS INSTRUMENTS 933 Battery Controller 933/3D36 9333D36

$68.20
CURTIS INSTRUMENTS 933 Battery Controller 933/3D36 9333D36

BUY TWO FOR 49 USD $ / EACH

PRODUCT DESCRIPTION

The Curtis 933/3D36 is a controller and a fuel gage for the battery. It protects the battery against deep discharge, therefore, prolonging the life of the component. Its features include adjustable reset, lift lockout, and discharge settings. It is a highly reliable controller as it is capable of operating despite harsh conditions and has a high-quality aluminum material used for hardware.


Curtis 933/3D36 is a 36-volt model. Some of the key features of the controller are its lockout feature, battery detection and recognition, and its non-volatile memory called EEPROM, among others. It also has dual voltage capabilities and compatibility with Model 1156 as its optional features.


The controller can now be purchased here in Cloud Electric, your one-stop shop for all your electric component needs. Cloud Electric is a leading distributor of electronic components in North America. We take pride in our informative product descriptions, pricing, and shipping speed.


Compatible Vehicle:

  • Crown Forklift

  • Toyota Forklift


SPECIFICATIONS

VOLTAGE

36 V

STANDARD LEVEL

  • Reset

Factory Set: 2.09 VPC

Range: 2-2.18 VPC

  • Discharge

Factory Set: 1.73 VPC

Range: 1.56-1.82 VPC

TEMPERATURE


  • Storage

-55°C to 85°C

  • Operating

-20°C to 85°C

PHYSICAL SPECIFICATIONS

DIMENSIONS

Controller

  • Length

113 mm

  • Width

113 mm

  • Depth

53 mm

DIMENSIONS

Battery Indicator

  • Diameter

58 mm

  • Depth

55 mm

FEATURES

Features

Purpose

Red LED

Notifies the user of energy reverse at the discharge of 75%

Lift Lockout @ 80% discharge

  • The lift coil circuit is locked out and comes with optional warning signals located on other vehicles

  • The lift is finished before lockout when discharge is reached during lift

Charge Detection

This feature recognizes whether the battery is improperly charged

EEPROM

Utilizes a non-volatile memory allows maintaining state-of-charge even after removal from a power source

Reset and Discharge Level

Both levels indicating lockout point are adjustable

Easy Installation

Mounting the device to a vehicle is easy. The following are the tools required:

  • Controller: 2 pieces of ¼-inch bolts to the body of the vehicle

  • Gage: a 2-1/16-inch round cut out to the dash

OPTIONAL FEATURES

  • Compatibility with Model 1156: It is an LED gage with 10 bars that flash to signify a low fuel level

  • Dual Voltage: There are two voltages the user can choose from, which can be changed using jumpers

  • AV: Installable to any parts of the circuit of the lift coil. It has a maximum resistive load capacity of 150 VA on the secluded NC relay

    • The AX output is close to the AW output, however, it closes at lockout and with NO relay

  • High Voltage Reset: While charging, the battery remains connected to the controller

  • Dual Voltage-Automatic Ranging: Adjusts automatically according to the correct system voltage


DIMENSIONS


WIRING DIAGRAM
