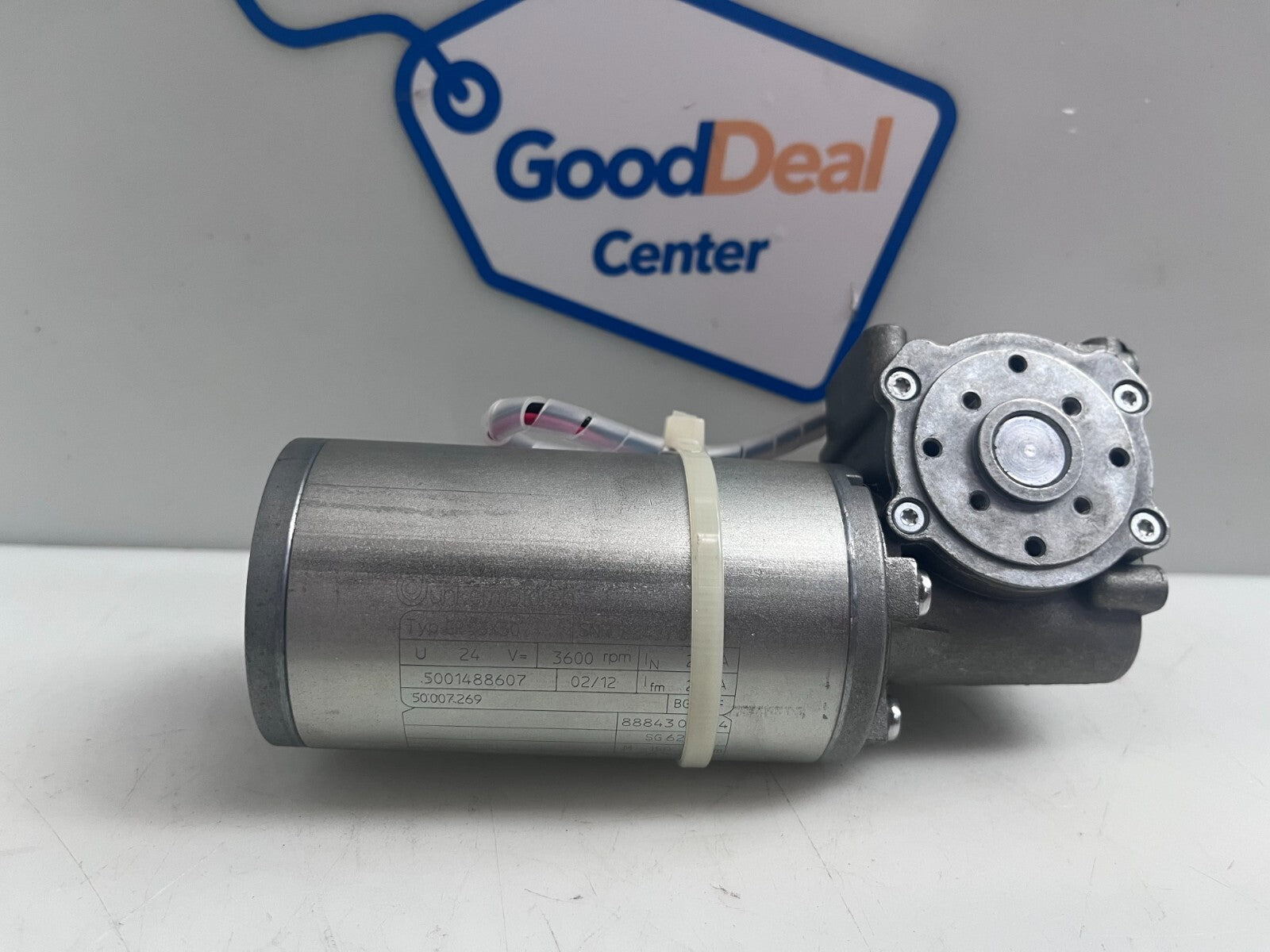

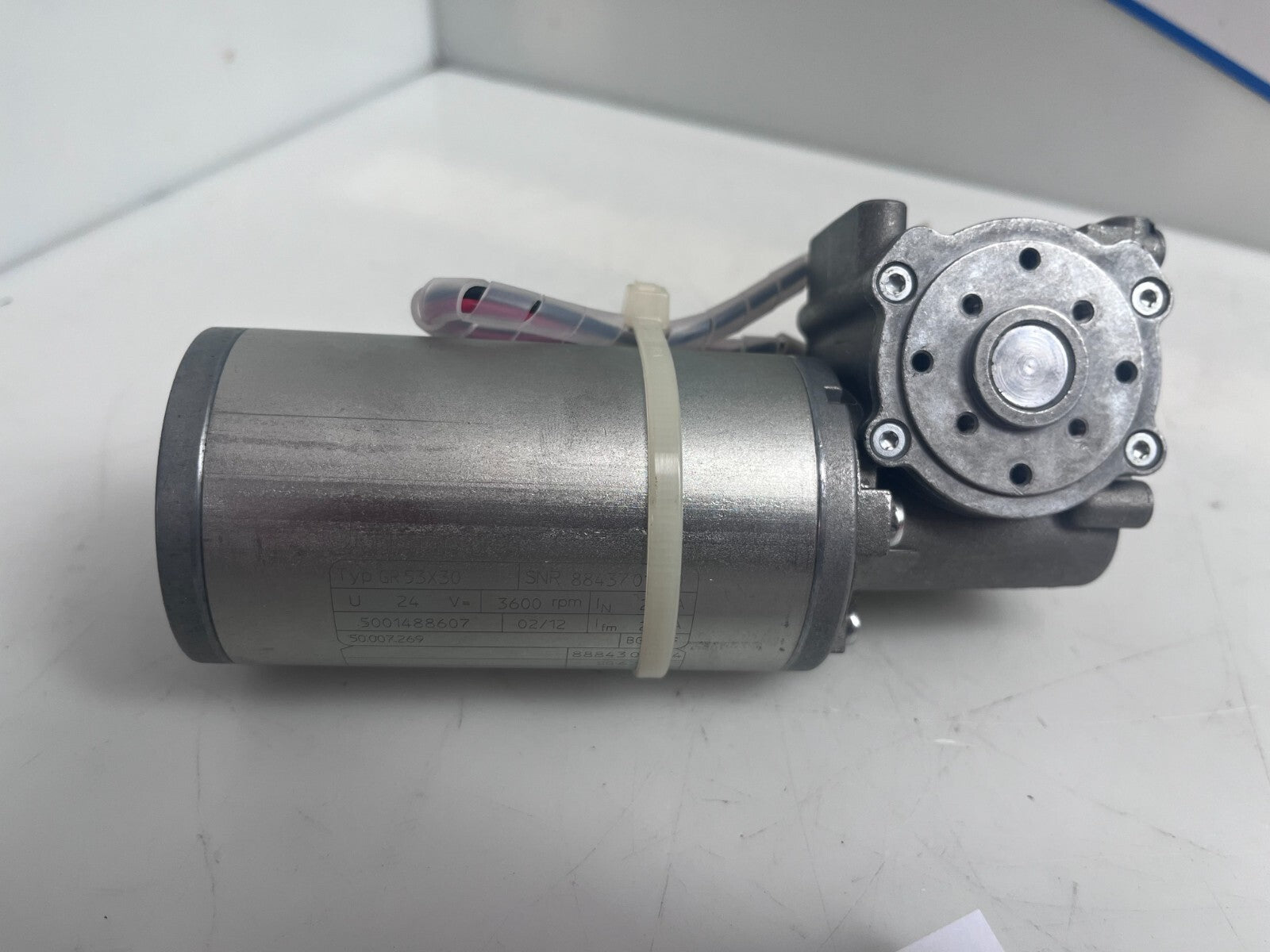

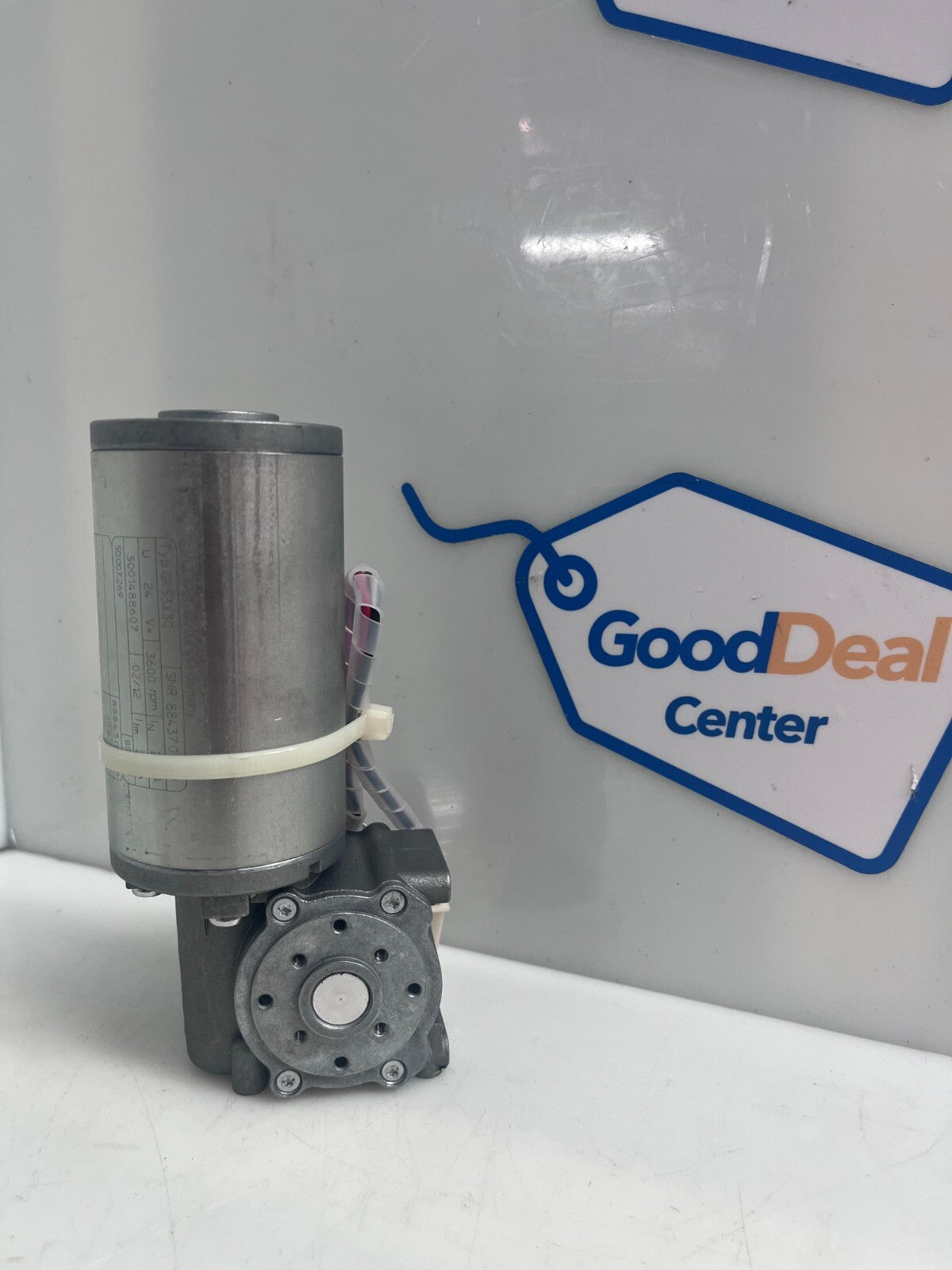

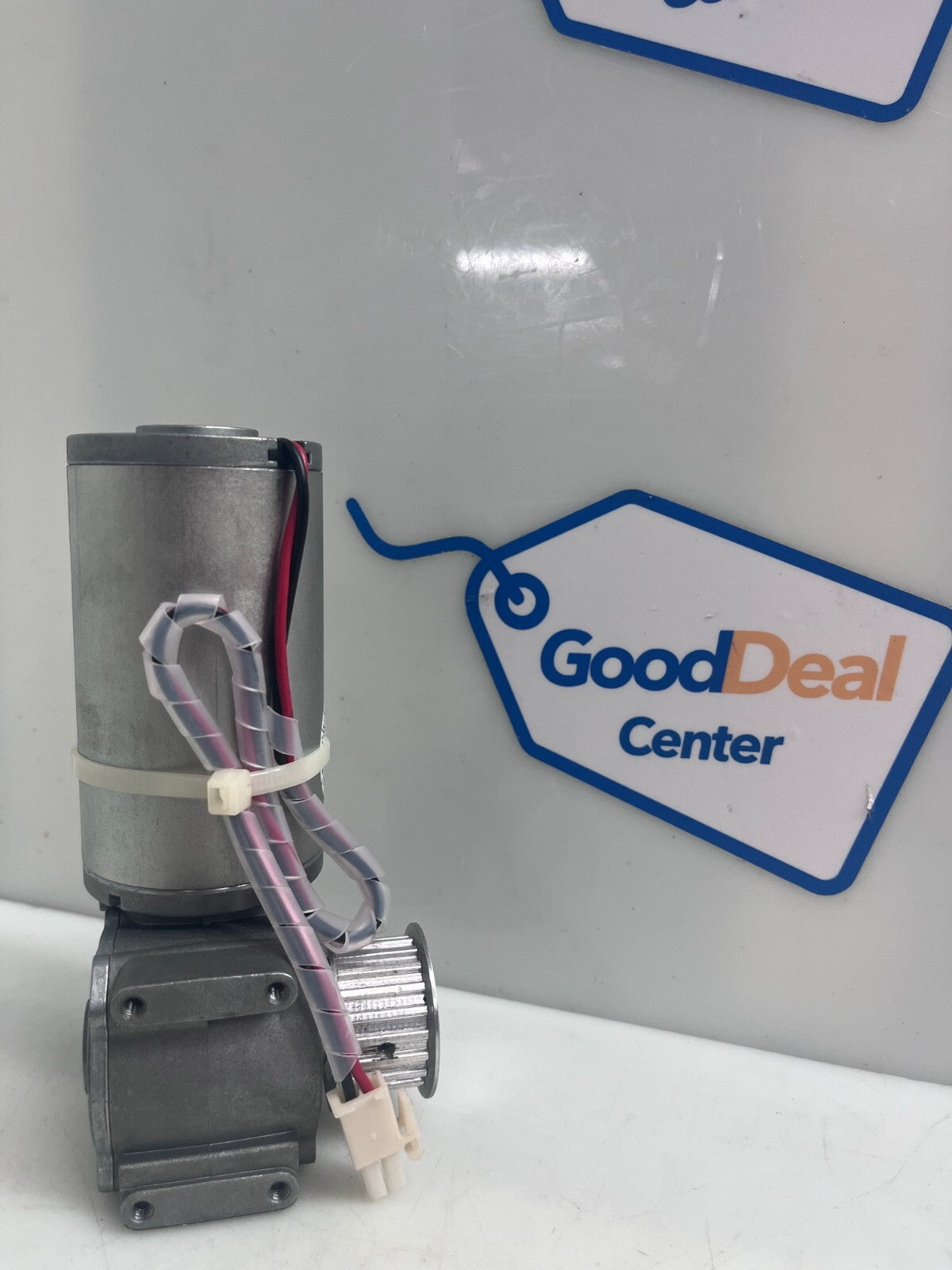

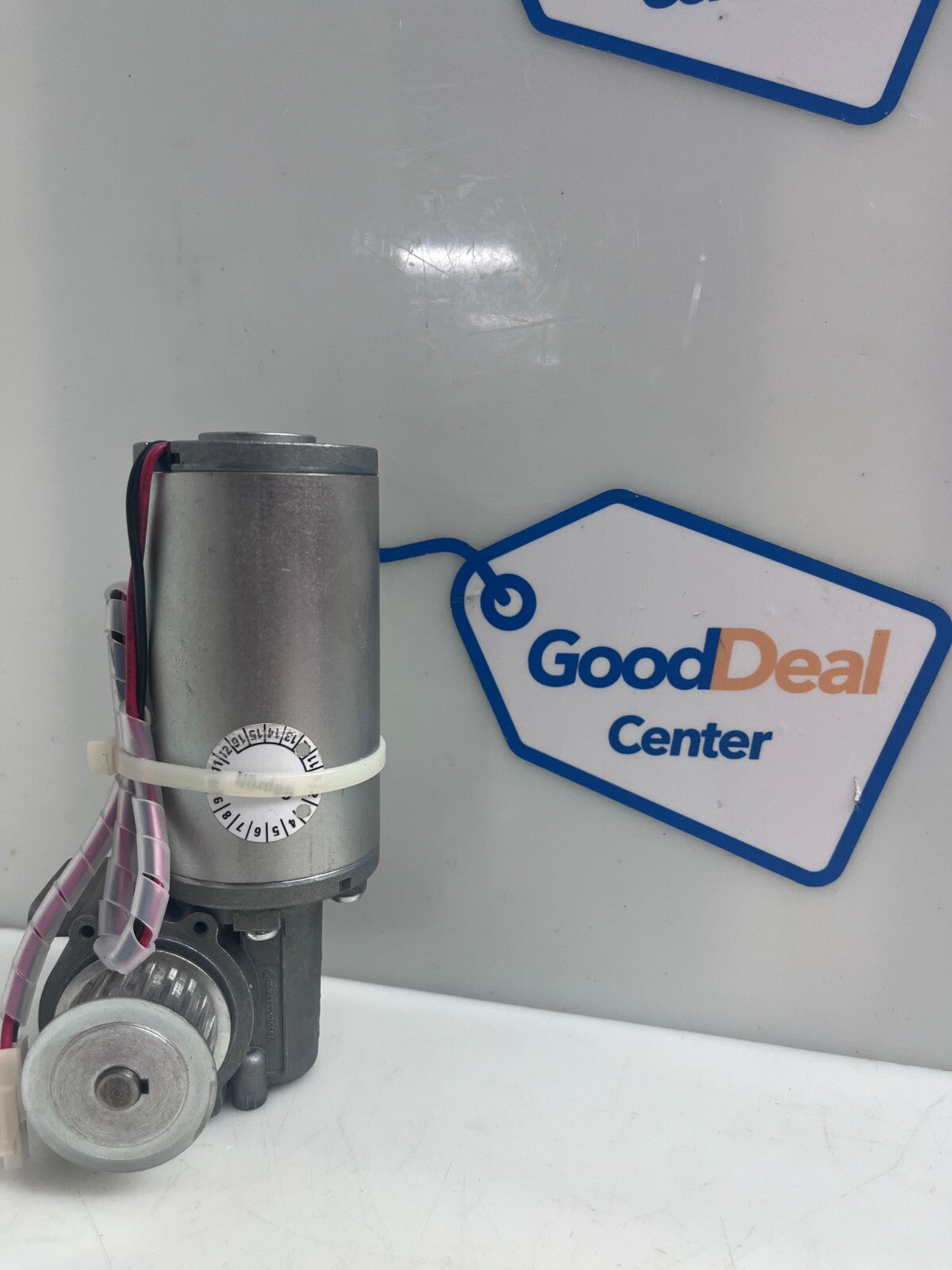

DUNKERMOTOREN GR53X30 Gear Box Motor

DUNKERMOTOREN GR53X30 Gear Box Motor

$121.80
DUNKERMOTOREN GR 53X30 Gear Box Motor

BUY TWO FOR 79 USD $ / EACH
BUY THREE FOR 69 USD $ / EACH


CHARACTERISTICS

AC/DC
DC
Type
brushed
Voltage
12 V, 60 V
Protection class
robust, maintenance-free
Configuration
permanent magnet
Power

35.7 W, 37 W, 37.7 W, 39.2 W
(0.049 hp, 0.05 hp, 0.051 hp, 0.053 hp)

Torque

0.09 Nm, 0.096 Nm, 0.1 Nm
(0.0664 ft.lb, 0.0708 ft.lb, 0.0738 ft.lb)

Rotational speed

3,600 rpm, 3,680 rpm, 3,790 rpm, 4,000 rpm
(22,619.47 rad.min-1, 23,122.12 rad.min-1, 23,813.27 rad.min-1, 25,132.74 rad.min-1)

DESCRIPTION

» Mechanical commutation through multipartite collector provides long lifetime » Operation in both directions of rotation » Ball bearing at motor output shaft is standard » With custom shaft length and diameter, shaft on both sides, special winding, higher protection class up to IP 67 Nominal voltage - V:24 Nominal current - A:2.3 Nominal torque - Ncm:10 Nominal speed - rpm:3600 Friction torque at no load - Ncm:1.4 Peak stall torque Ncm:67 No load speed rpm:4200 Maximum output power W:73.8 Nominal power - W:37.7 Torque constant - Ncm/A:5.06 Terminal resistance Ohm:1.77 Terminal inductance mH:3.6 Starting current - A:13.5 No load current - A:0.28 Demagnetisation current A:20 Rotor inertia gcm^2:229 Weight kg:0.85
