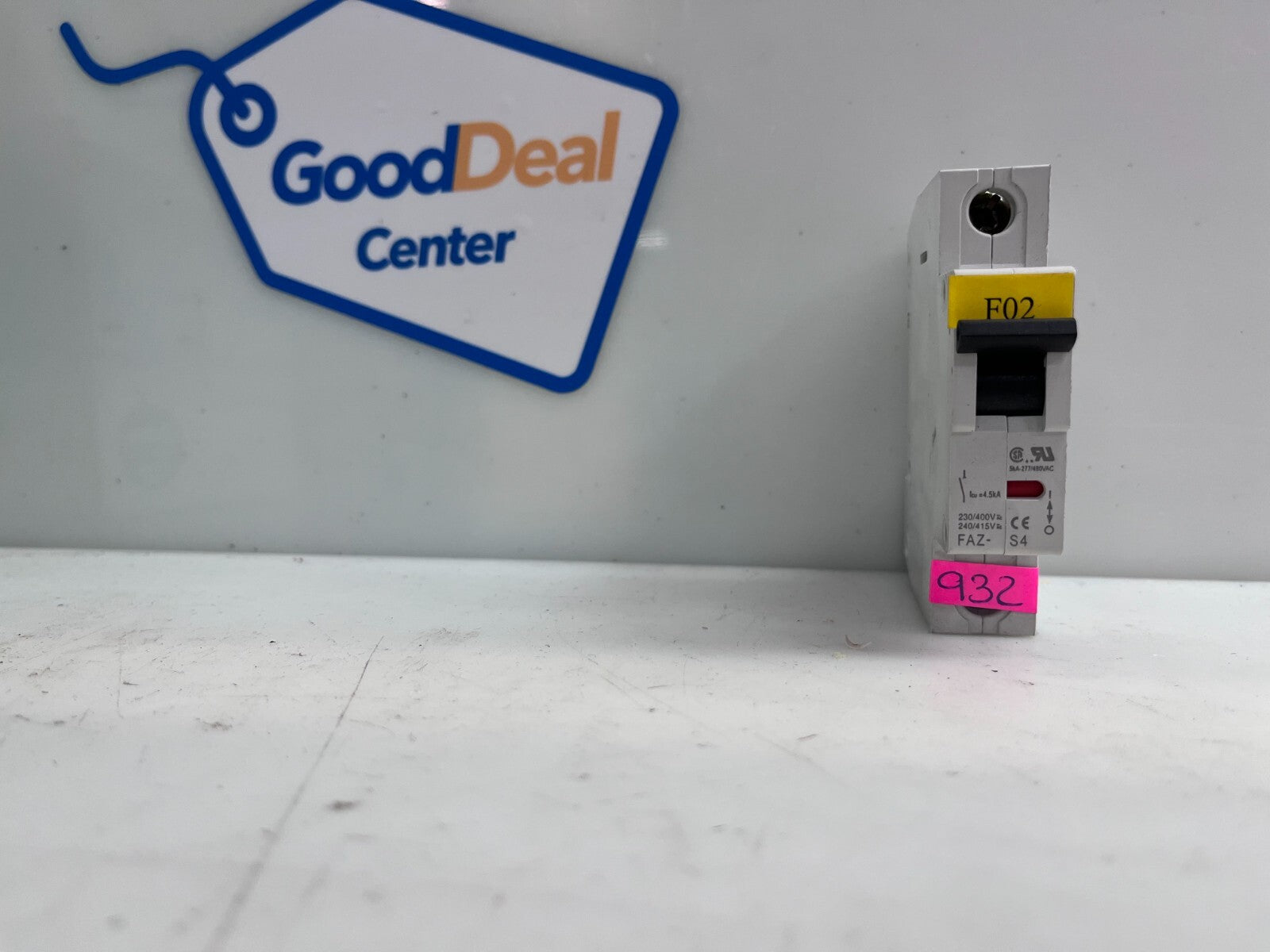

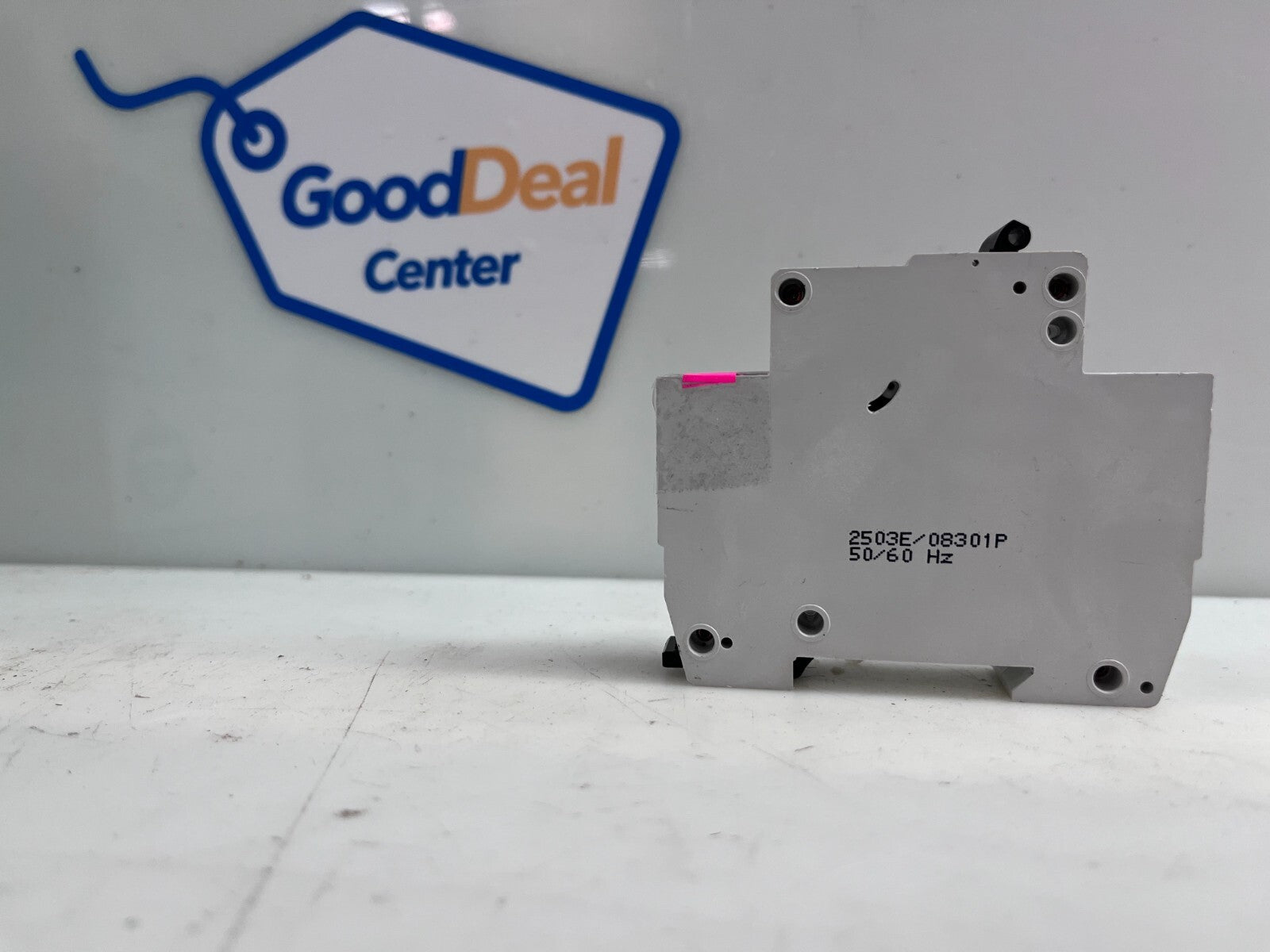

EATON MOELLER FAZ-S4/1 Circuit Breaker
  • EATON MOELLER FAZ-S4/1 Circuit Breaker
  • EATON MOELLER FAZ-S4/1 Circuit Breaker
  • EATON MOELLER FAZ-S4/1 Circuit Breaker
  • EATON MOELLER FAZ-S4/1 Circuit Breaker
EATON MOELLER FAZ-S4/1 Circuit Breaker

EATON MOELLER FAZ-S4/1 Circuit Breaker

$39.49
EATON MOELLER FAZ-S4/1 Circuit Breaker

The FAZ series Miniature Circuit Breaker for use with control panels. When it comes to protecting and switching, this range of reliable and safe products are a guarantee of protection for people, installations and systems worldwide. Ideally suited to control circuits FAZ MCB is designed and approved for industrial and high end commercial applications, offering a wide variety of diverse protection characteristics. The FAZ series includes auxiliaries, tripping modules, interlocks, busbar and accessories. It is suitable for use with residential applications.
  • Optional ring lug connection
  • Reliable and safe operation
  • Possibility of fork- and pin-busbar
  • Environmentally friendly
  • Finger-proof and trip-free mechanism
  • Red and green contact position indicator
  • Guide for secure terminal connection
  • 3-position DIN rail clip, permits removal from existing busbar system
  • Comprehensive range of accessories suitable for subsequent installation
  • B Standard tripping characteristic for circuit protection
  • C Tripping characteristic for higher inrush currents (machines, lamp groups)
  • D Tripping characteristic for inductive and capacitive loads like transformers, condensers
  • K Tripping characteristic for high inrush currents
  • S Tripping characteristic for control-transformers
  • Z Tripping characteristic for semi-conductor protection
