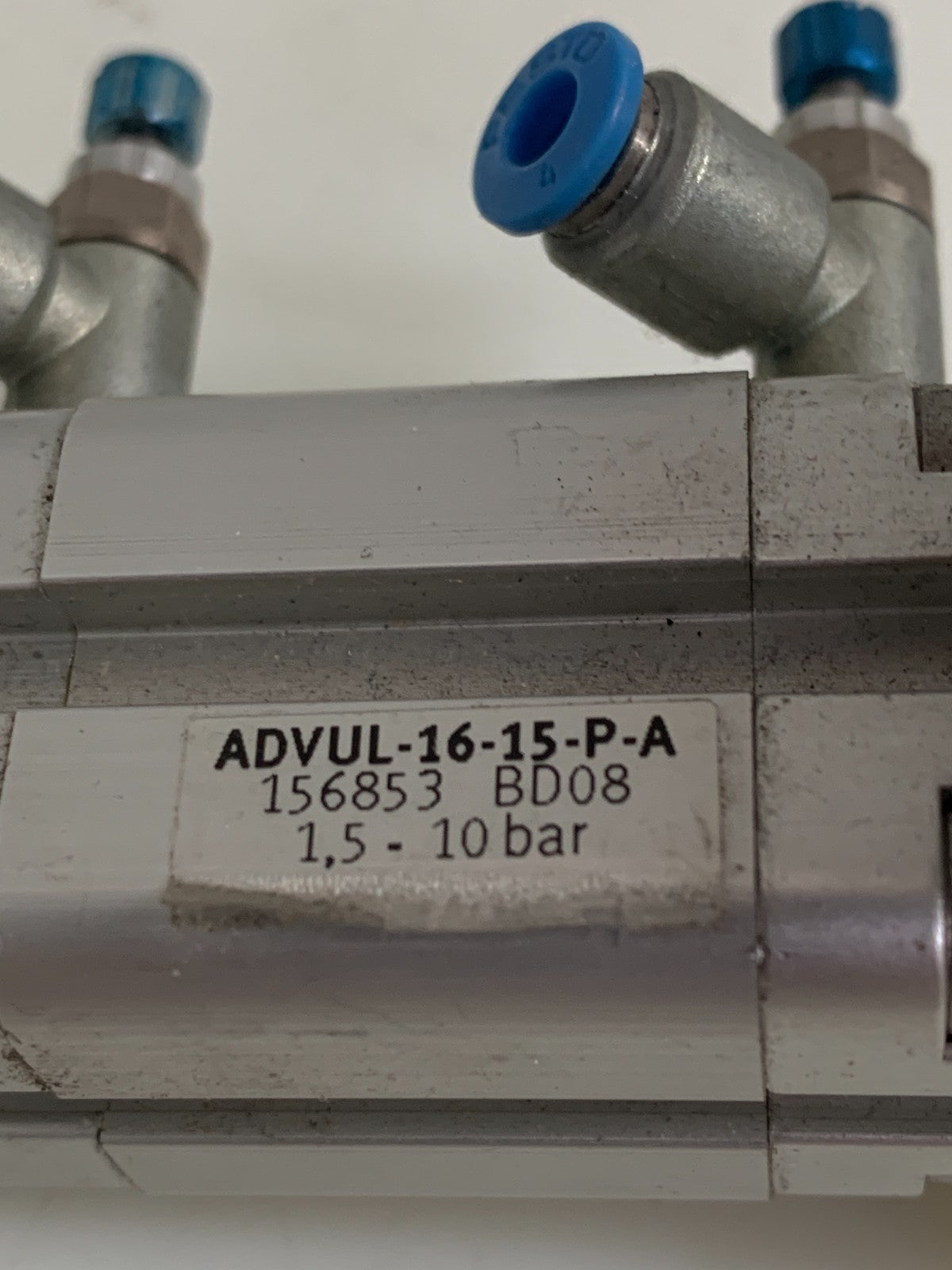

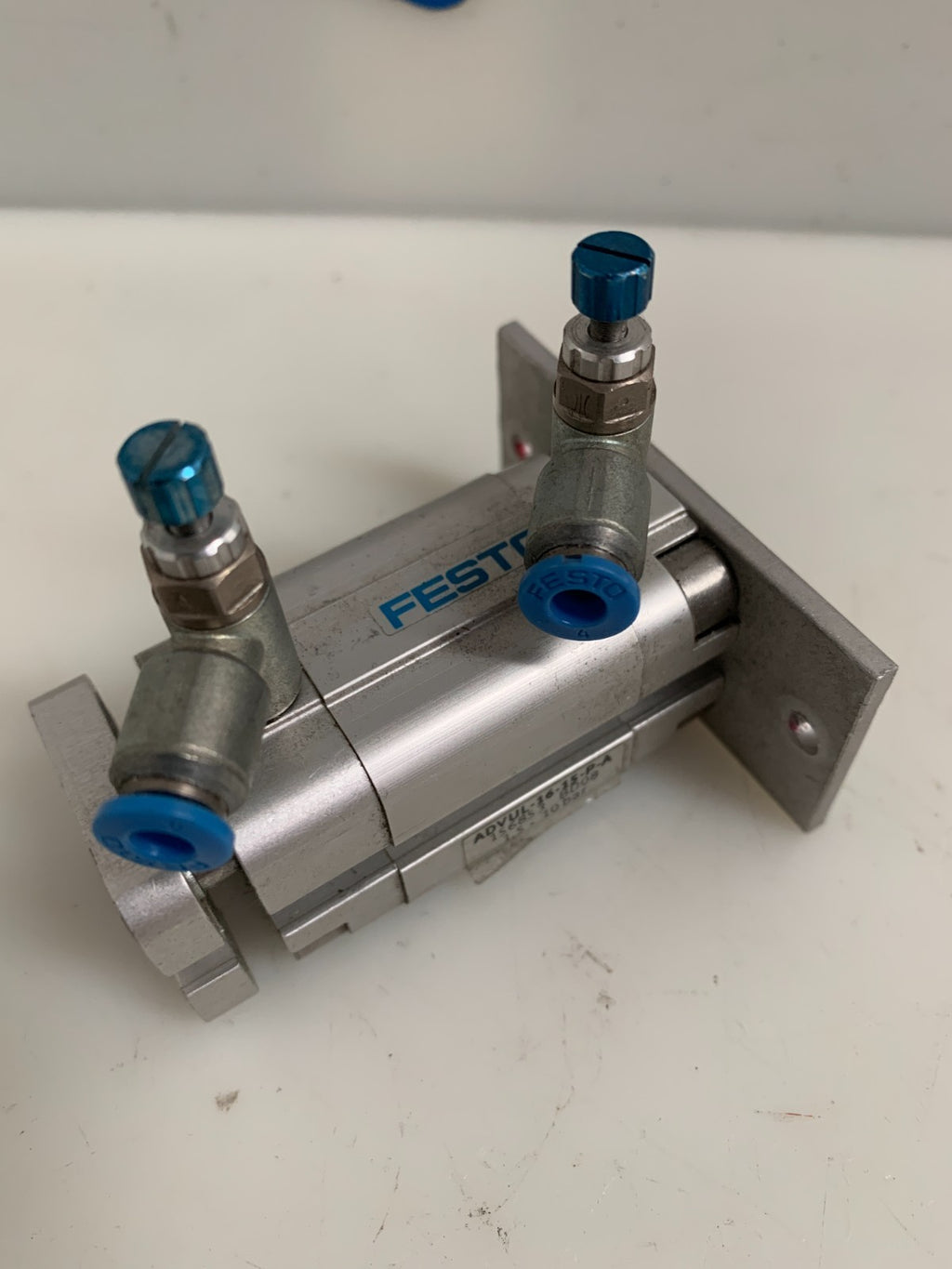

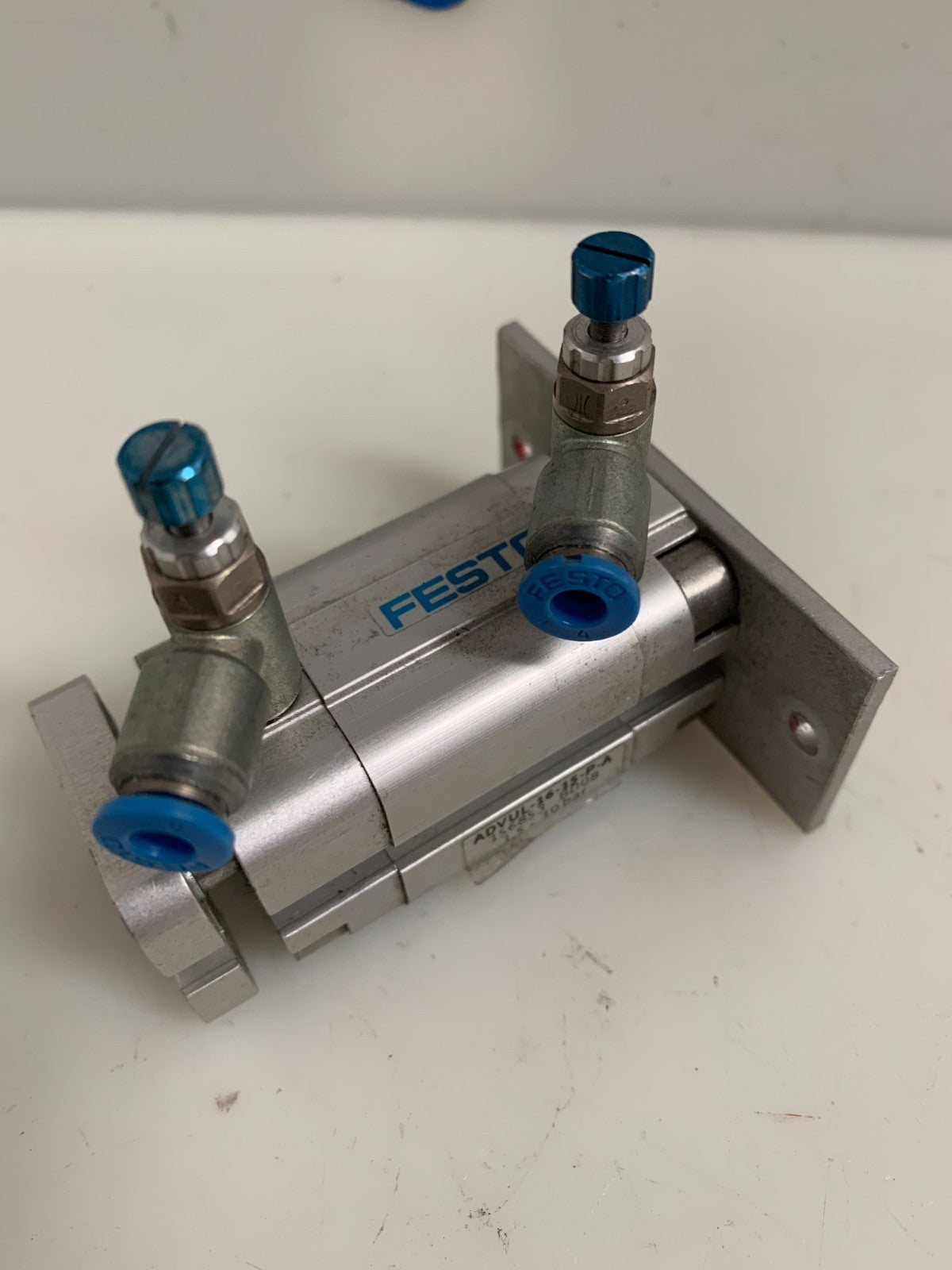

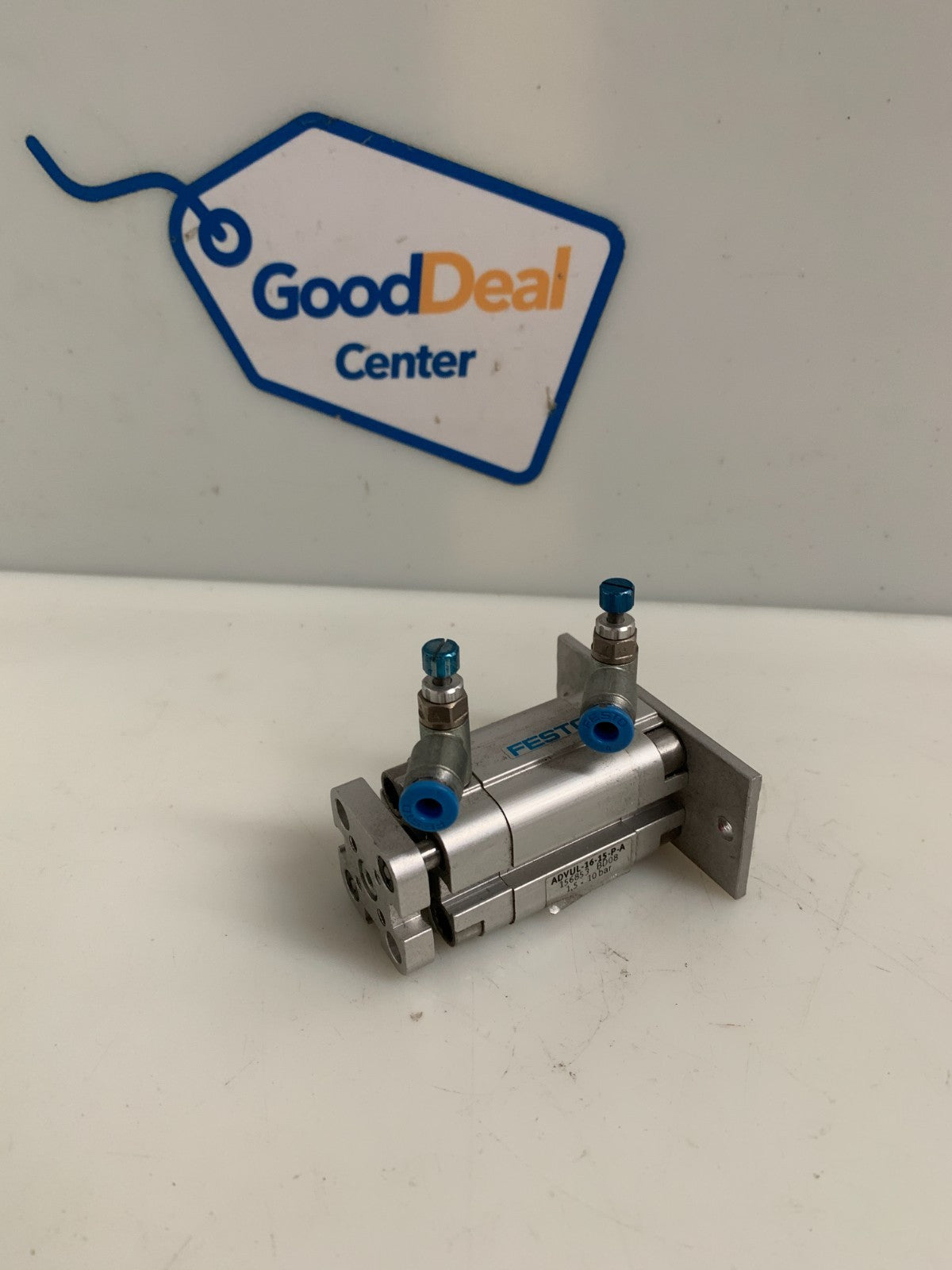

FESTO ADVUL-16-15-PA Pneumatic Cylinder 156853 W/ 2 Adjustable Valves
FESTO ADVUL-16-15-PA Pneumatic Cylinder 156853 W/2 Adjustable Valves
$39.00
- Stroke15 mm
- Piston diameter16 mm
- CushioningElastic cushioning rings/plates at both ends
- Mounting positionoptional
- DesignPiston Piston rod
- Position detectionVia proximity switch
- Symbol00991737
- VariantsPiston rod at one end
- Protection against torque/guideGuide rod with yoke
- Operating pressure0.15 MPa ... 1 MPa
- Operating pressure1.5 bar ... 10 bar
- Mode of operationDouble-acting
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC2 - Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Ambient temperature-20 °C ... 80 °C
- Impact energy in end positions0.1 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke90 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke121 N
- Moving mass for 0 mm stroke26 g
- Additional moving mass per 10 mm stroke6 g
- Basic weight for 0 mm stroke103 g
- Additional weight per 10 mm stroke16 g
- Type of mountingEither: With through-hole With accessories
- Pneumatic connectionM5
- Material collar screwsHigh-alloy stainless steel
- Material coverWrought aluminium alloy
- Material dynamic sealsNBR TPE-U(PU)
- Material piston rodHigh-alloy stainless steel
- Material cylinder barrelWrought aluminium alloy
