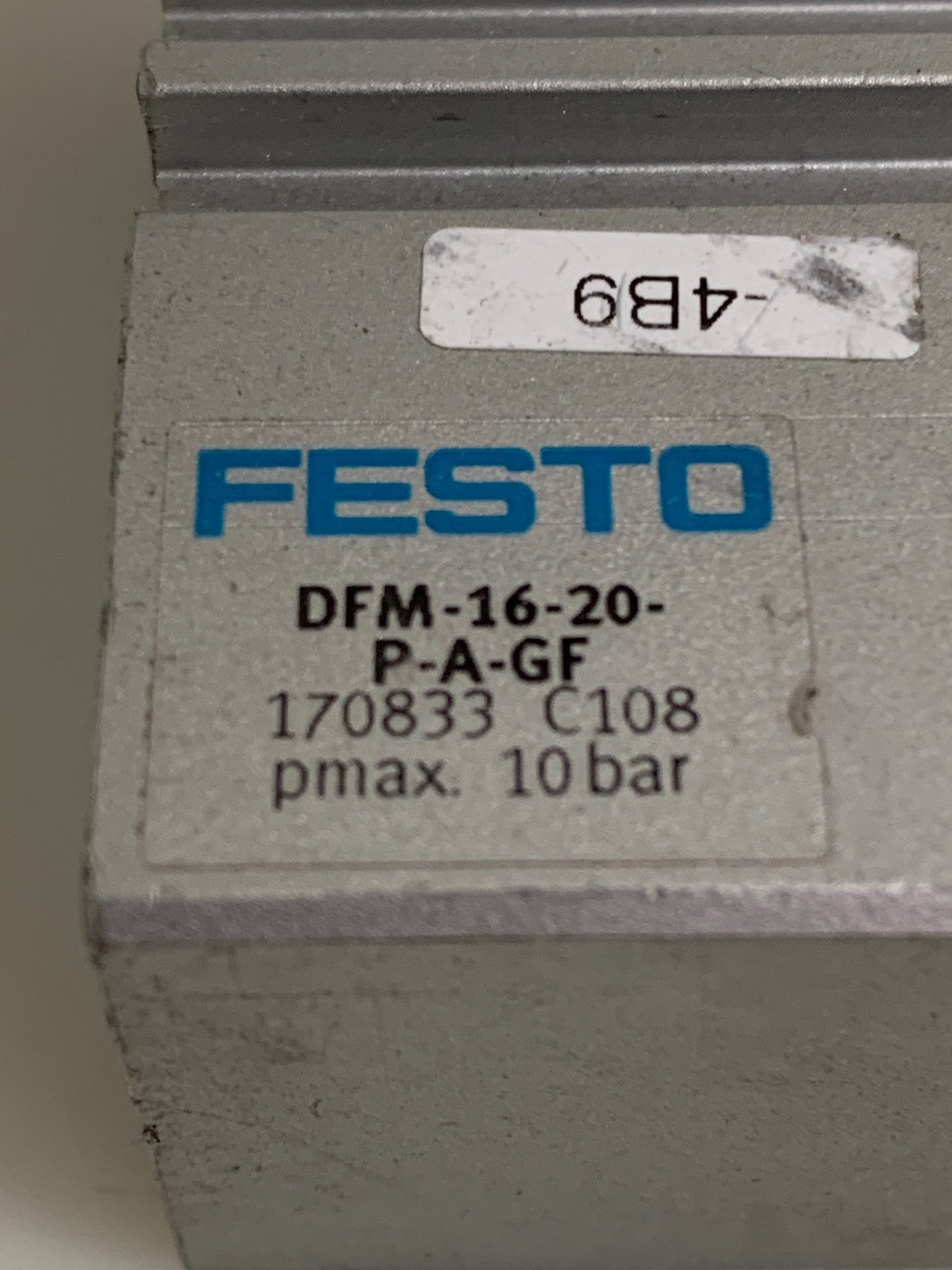

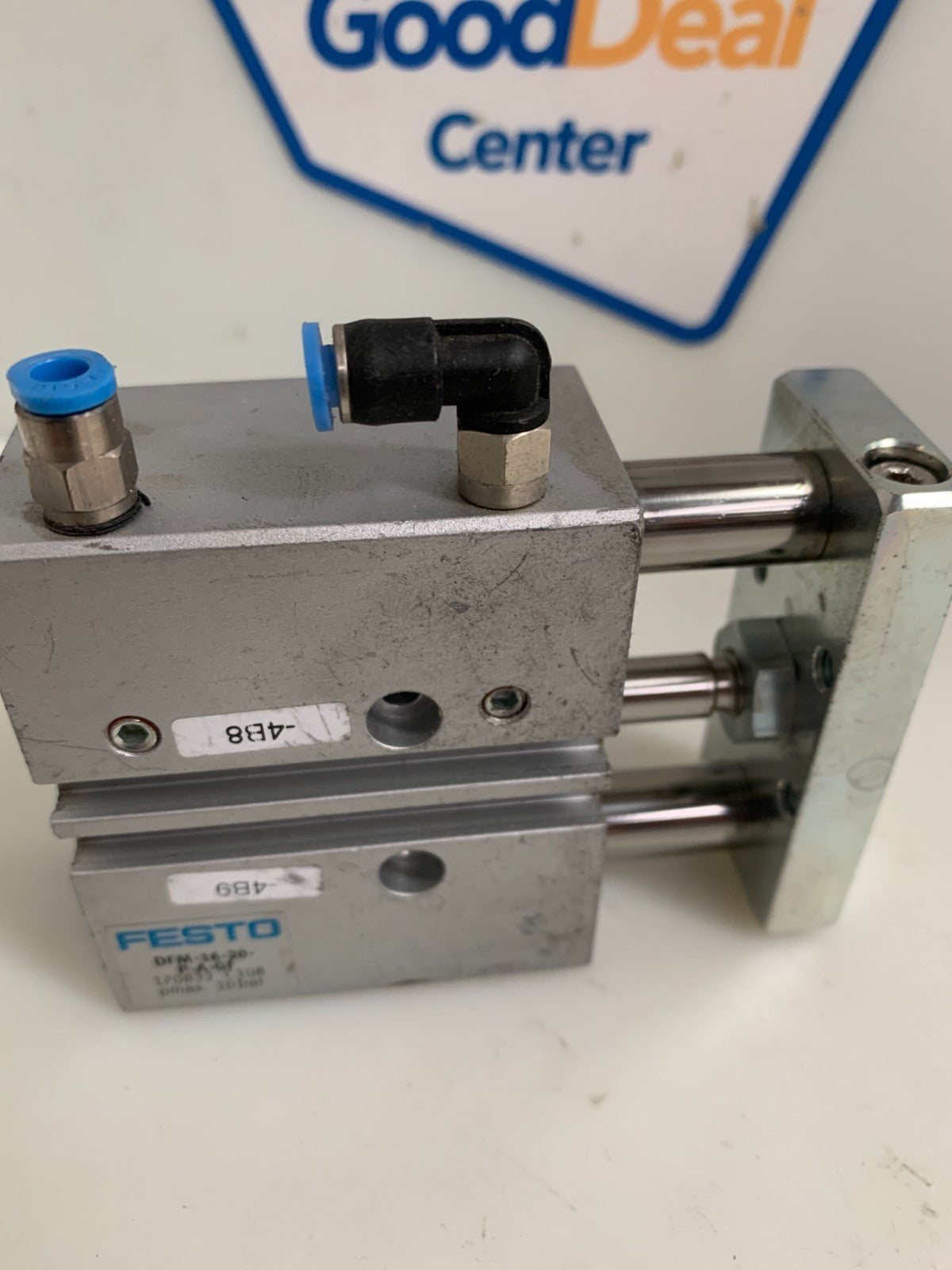

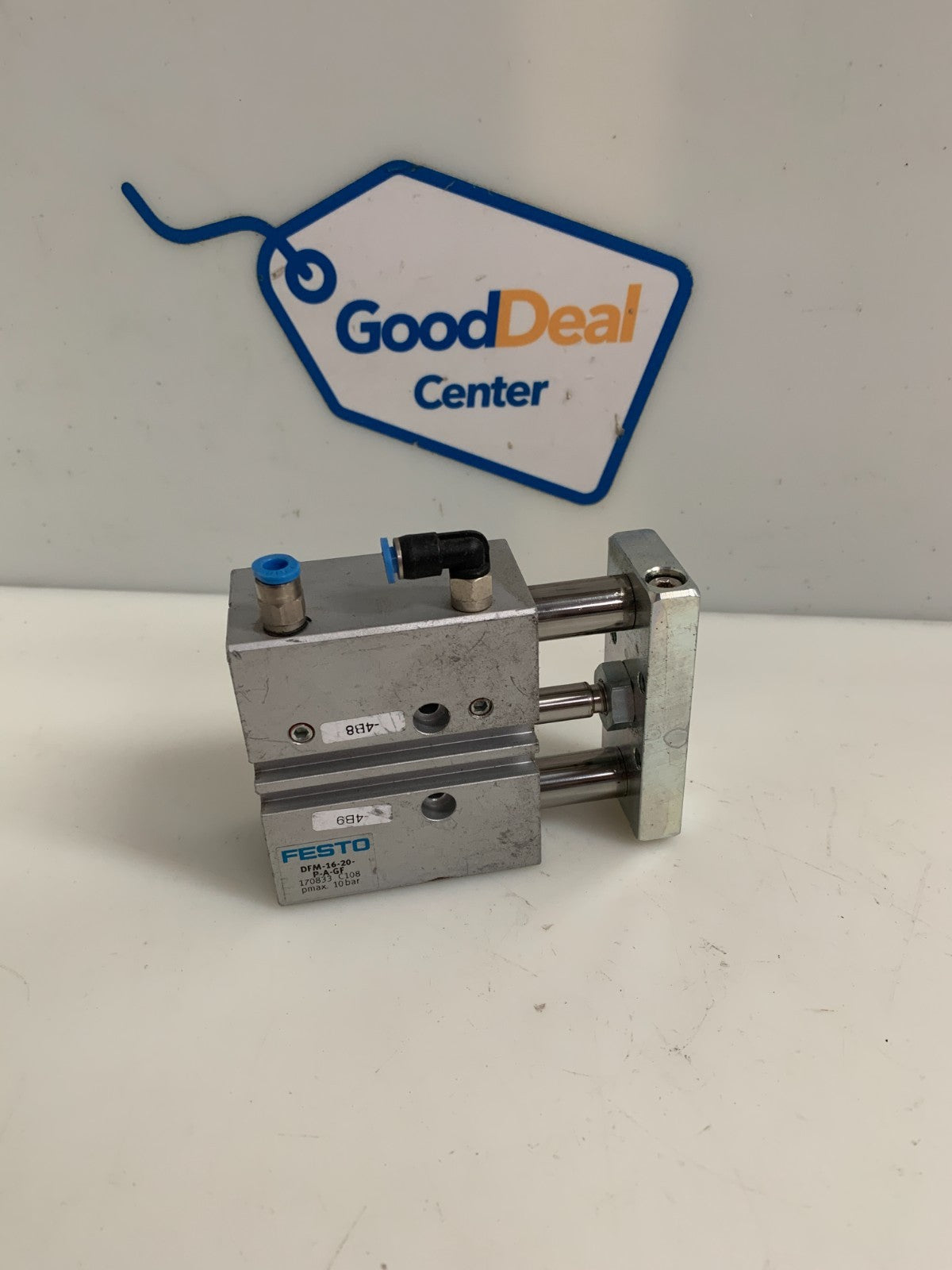

FESTO DFM-16-20-P-A-GF Guided Actuator 170833
FESTO DFM-16-20-P-A-GF Guided Actuator 170833
$29.00
- Distance from centre of gravity of load to yoke plate xs50 mm
- Stroke20 mm
- Piston diameter16 mm
- Operating mode, drive unitYoke
- CushioningElastic cushioning rings/plates at both ends
- Mounting positionoptional
- GuidePlain-bearing guide
- DesignGuidance
- Position detectionVia proximity switch
- Symbol00991737
- Operating pressure0.2 MPa ... 1 MPa
- Operating pressure2 bar ... 10 bar
- Max. speed0.8 m/s
- Mode of operationDouble-acting
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC1 - Low corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Cleanroom classClass 6 according to ISO 14644-1
- Ambient temperature-20 °C ... 80 °C
- Impact energy in end positions0.15 J
- Max. force Fy304 N
- Max. force Fy static304 N
- Max. force Fz304 N
- Max. force Fz static304 N
- Max. moment Mx6.99 Nm
- Max. torque Mx static6.99 Nm
- Max. moment My2.89 Nm
- Max. torque My static2.89 Nm
- Max. moment Mz2.89 Nm
- Max. torque Mz static2.89 Nm
- Max. permissible torque load Mx as a function of stroke1.17 Nm
- Max. effective load dependent upon stroke at defined distance xs27 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke90 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke121 N
- Moving mass242 g
- Product weight507 g
- alternative connectionsSee product drawing
- Pneumatic connectionM5
- Note on materialsRoHS-compliant
- Material coverWrought aluminium alloy
- Material sealsNBR
- Material housingWrought aluminium alloy
- Material piston rodHigh-alloy stainless steel
