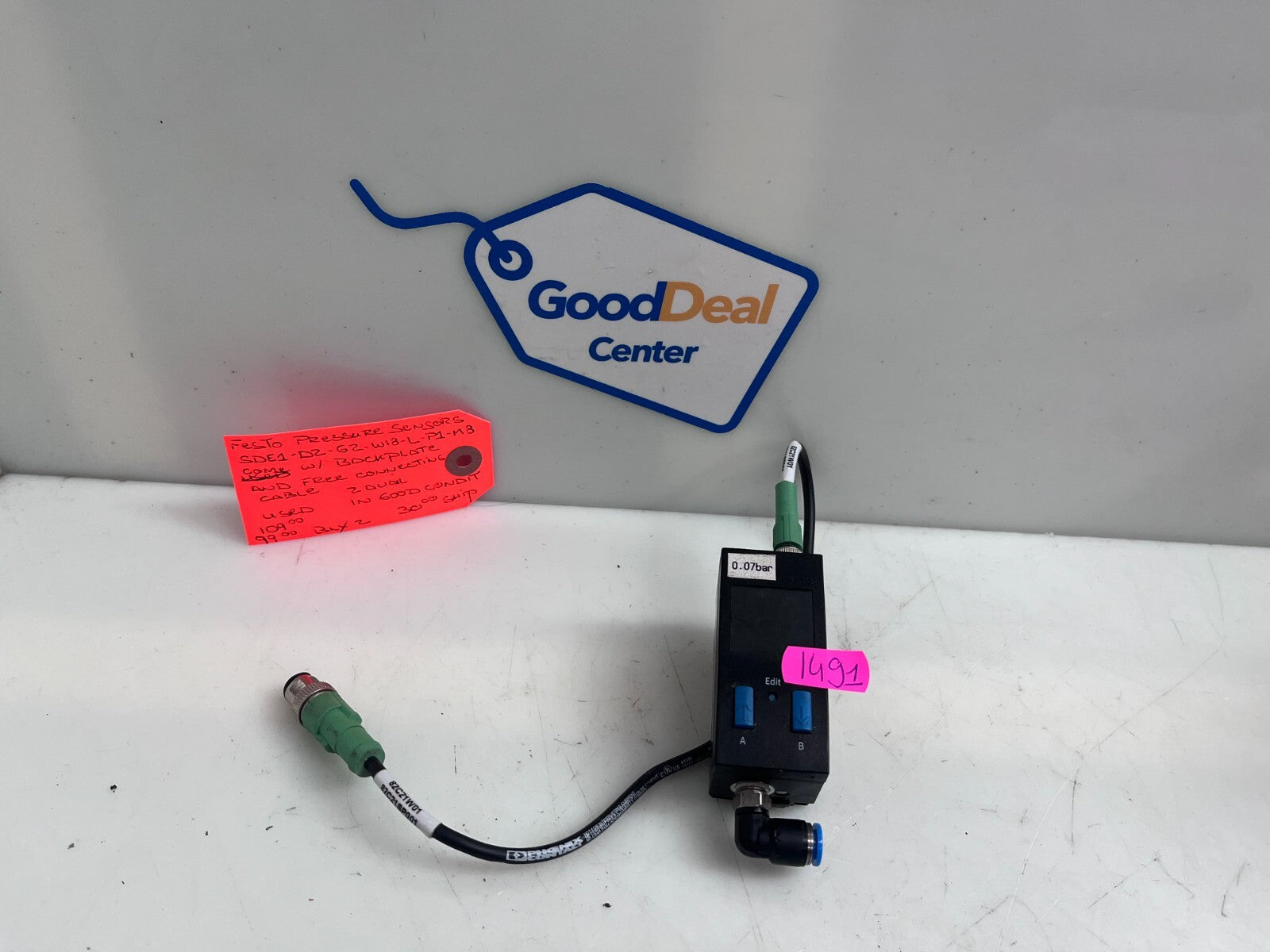

FESTO SDE1-D2-G2-W18-L-P2-M8 Differential Pressure Sensor Display
FESTO SDE1-D2-G2-W18-L-P2-M8 Differential Pressure Sensor Display
$149.17
COMES WITH
Backplate & Free Connecting Cable
BUY TWO FOR 99 USD $ / EACH
Pressure measuring range, initial value 0 bar
Pressure measuring range, final value 2 bar
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible
Medium temperature 0 ... 50 °C
Ambient temperature 0 ... 50 °C
Accuracy, FS 2 %FS
Switch output PNP
Switching function Freely programmable
Switching element function Switchable
Switching point reproducibility 0.3 %
Max. output current 150 mA
Short circuit strength Pulsing
Operating voltage range DC 15 ... 30 V
Polarity protected for all electrical connections
Electrical connection Plug
Round design
to EN 60947-5-2
M8x1
3-pin
Mounting type Optional
with top-hat rail
with wall/surface fixing
Assembly position Any
Pneumatic connection G1/8
Product weight 85 g
Material housing PA
POM-reinforced
Type of display illuminated LCD
Operating status display LCD
Setting options Teach-In
Protection against manipulation PIN-Code
Threshold value setting range 2 ... 99.8 %
Hysteresis setting range 0 ... 90 %
Protection class IP65
Corrosion resistance classification CRC 2 - Moderate corrosion stress
