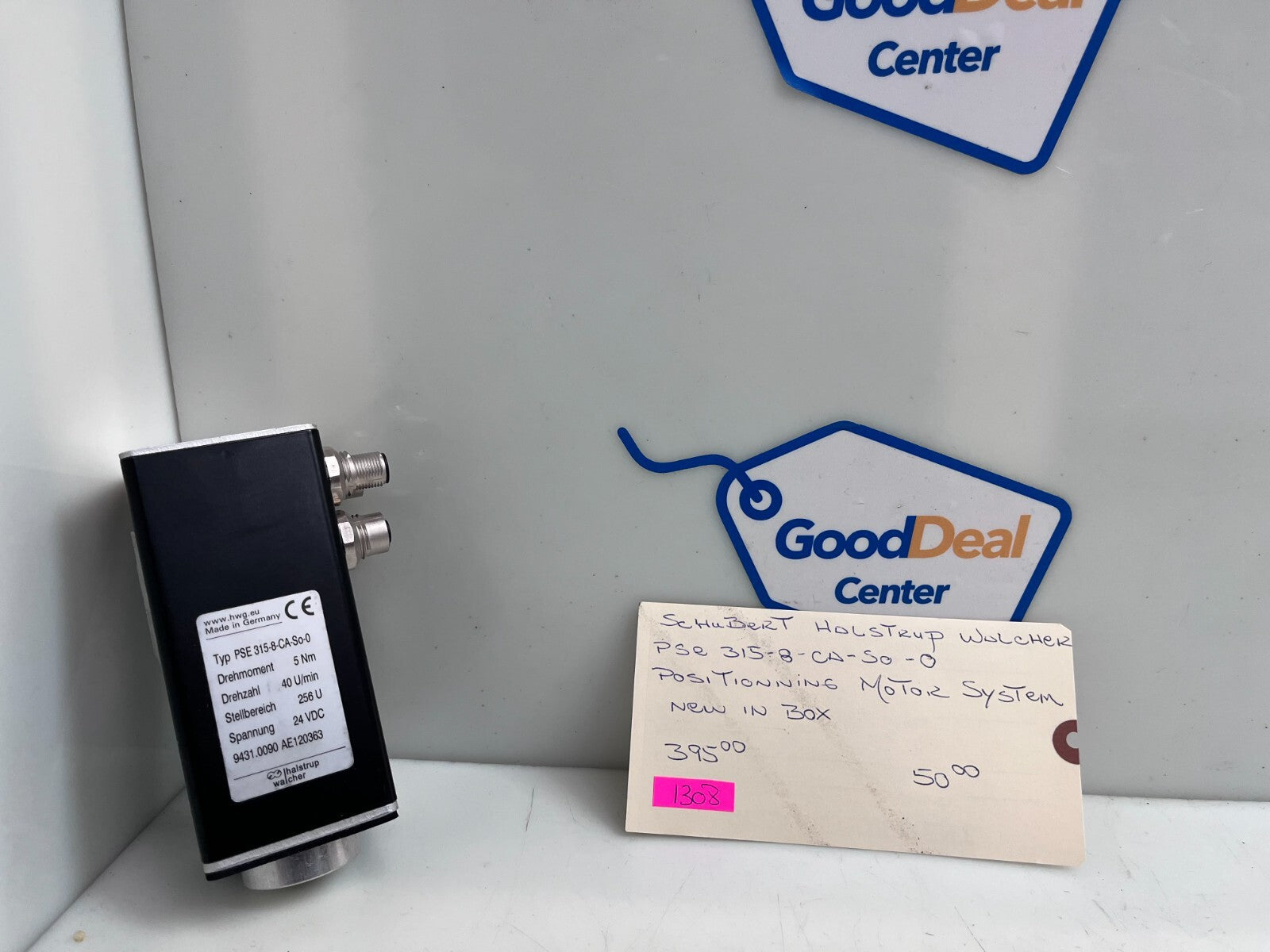

HALSTRUP WALCHER PSE 315-8-CA-So-0 System Motor
HALSTRUP WALCHER PSE 315-8-CA-So-0 System Motor
$540.02
Nominal
torque (x) 5 Nm
Self-holding
torque
(energized) 2.5 Nm
Nominal
rated speed 40min-1
Duty cycle 30% (basis time 300s)
Mode of operation S3
Supply voltage 24 VDC ±10% galvanically separated
between control and motor and bus
Nominal current 2.3 A
Power consumption (control unit) 0.1 A
Positioning accuracy
absolute measurement of position taken
directly at the output shaft
0.9°
Positioning range 250 rotations
not subject to mechanical limits
Shock resistance
in accordance with IEC/DIN EN 60068-
2-27
50g 11ms
Vibration resistance
in accordance with IEC/DIN EN 60068-2-6
10..55Hz 1.5mm/
55..1000Hz 10g/
10..2000Hz 5g
Output shaft 8 mm hollow shaft with clamp
ring
Max. axial force 20 N
Max. radial force 40 N
Ambient temperature 0..45°C
Storage temperature -10..70°C
Protection class IP54 (IP65 on request)
Weight 850g
