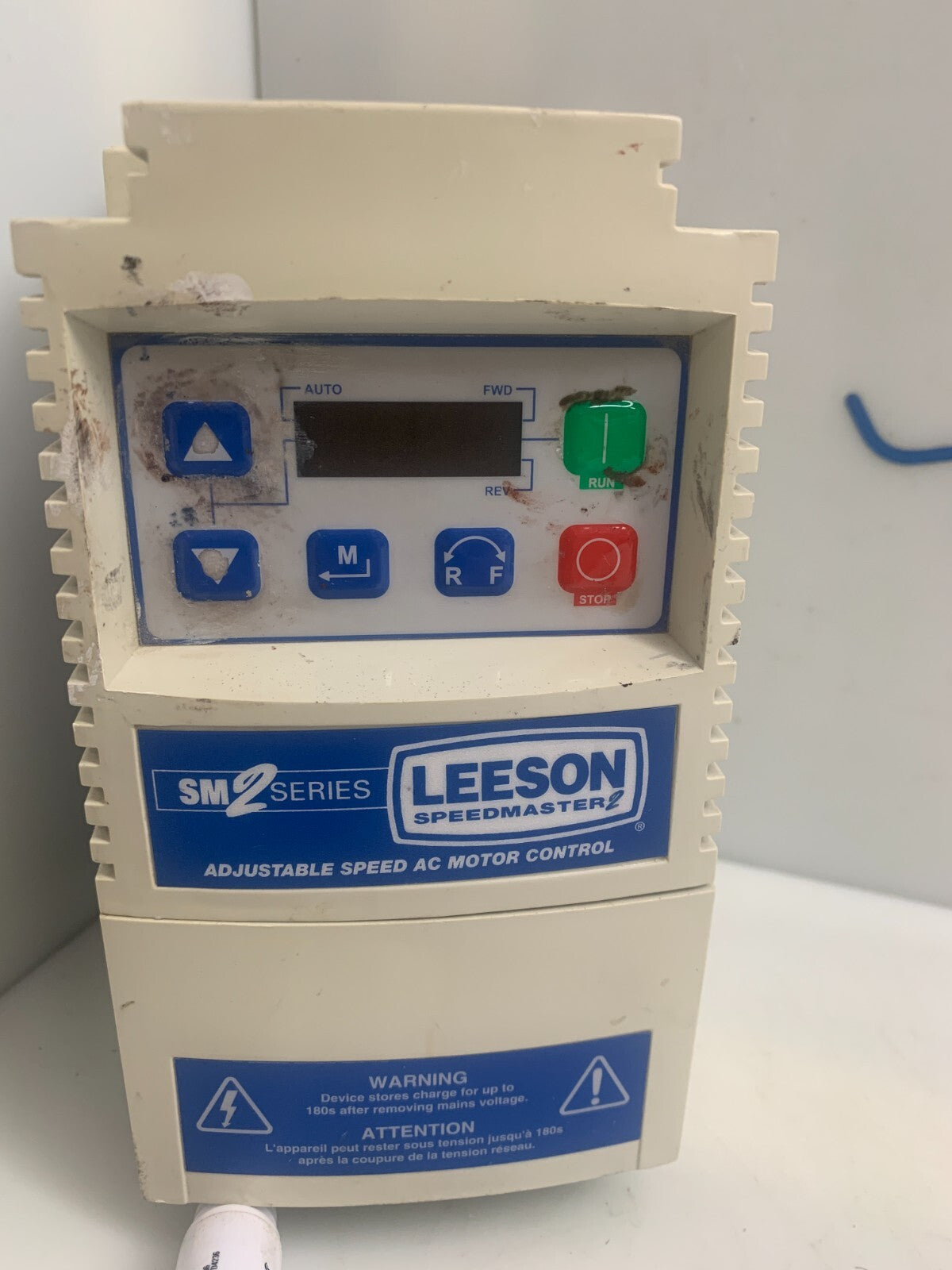

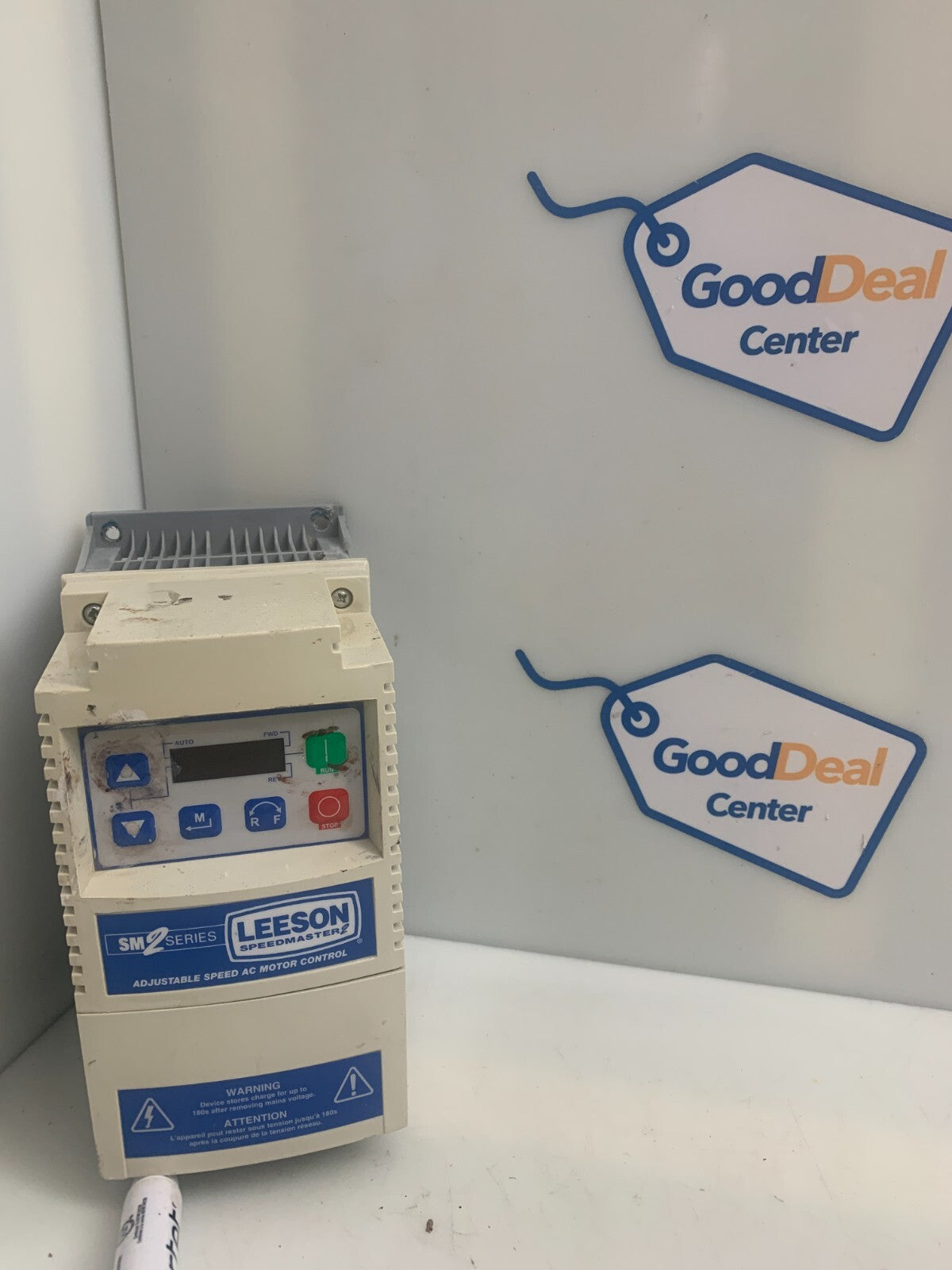

LEESON / Speedmaster 2 174634.00 Adjustable Speed AC Motor Control
LEESON / Speedmaster 2 174634.00 Adjustable Speed AC Motor Control
$619.75
The SM2 SERIES FLUX VECTOR™ carries all the features required by demanding applications including four modes of operation (V/Hz, Enhanced V/Hz, Vector Speed, and Torque), high starting torque, auto-tuning, advanced low-speed control, and dynamic speed regulation.
Feature
- Designed to be used with vector duty rated AC motors
- Enclosure: NEMA1/IP31
- 4 digit LED display
- Enhanced V/Hz with auto-tuning
- Optional remote keypad

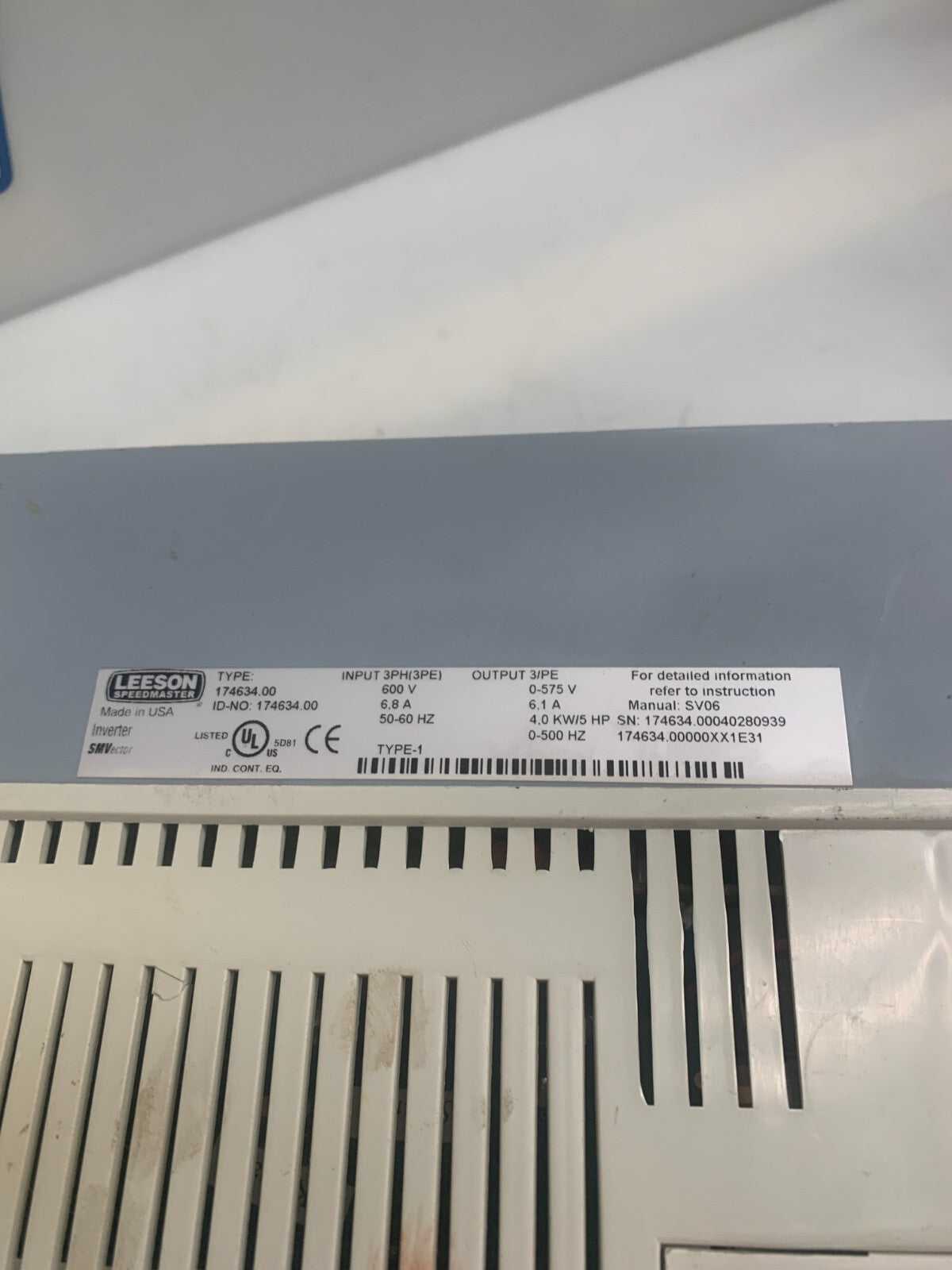

Electrical Data
HP CT Rating
5 HP
HP VT Rating
7 1/2 HP
Input
Output
Voltage
575V
575V
Max CT Current
6.8
6.1
Max VT Current
-
-
Phase
3
3
Hz Range
48-62
0-500
Physical Data
Weight
15 lb
Height
5.8"
Width
7.5"
Depth
3.9"
Enclosure
NEMA 1
Frame
CH3
Ambient Temp
-10 to 55°C
