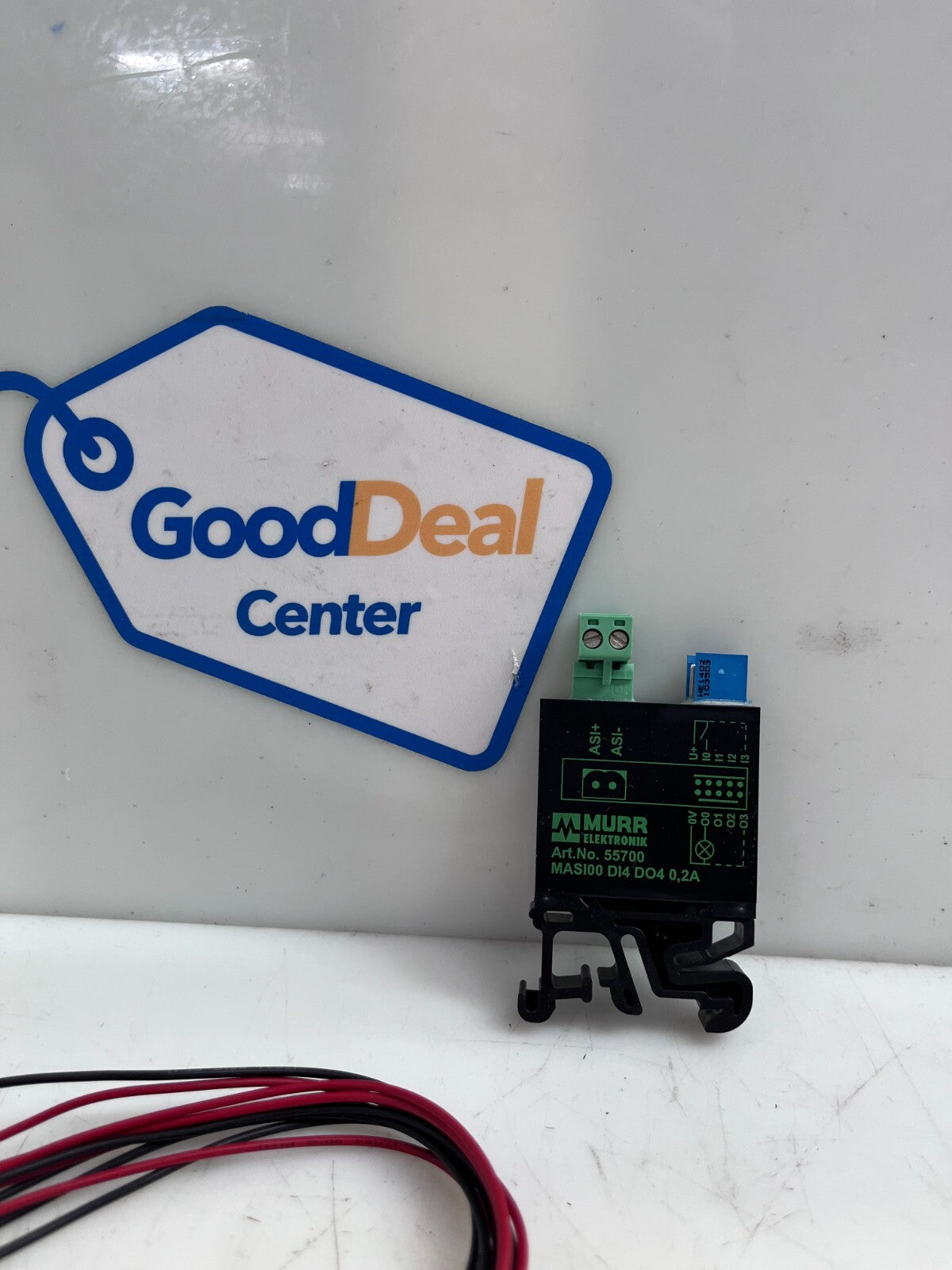

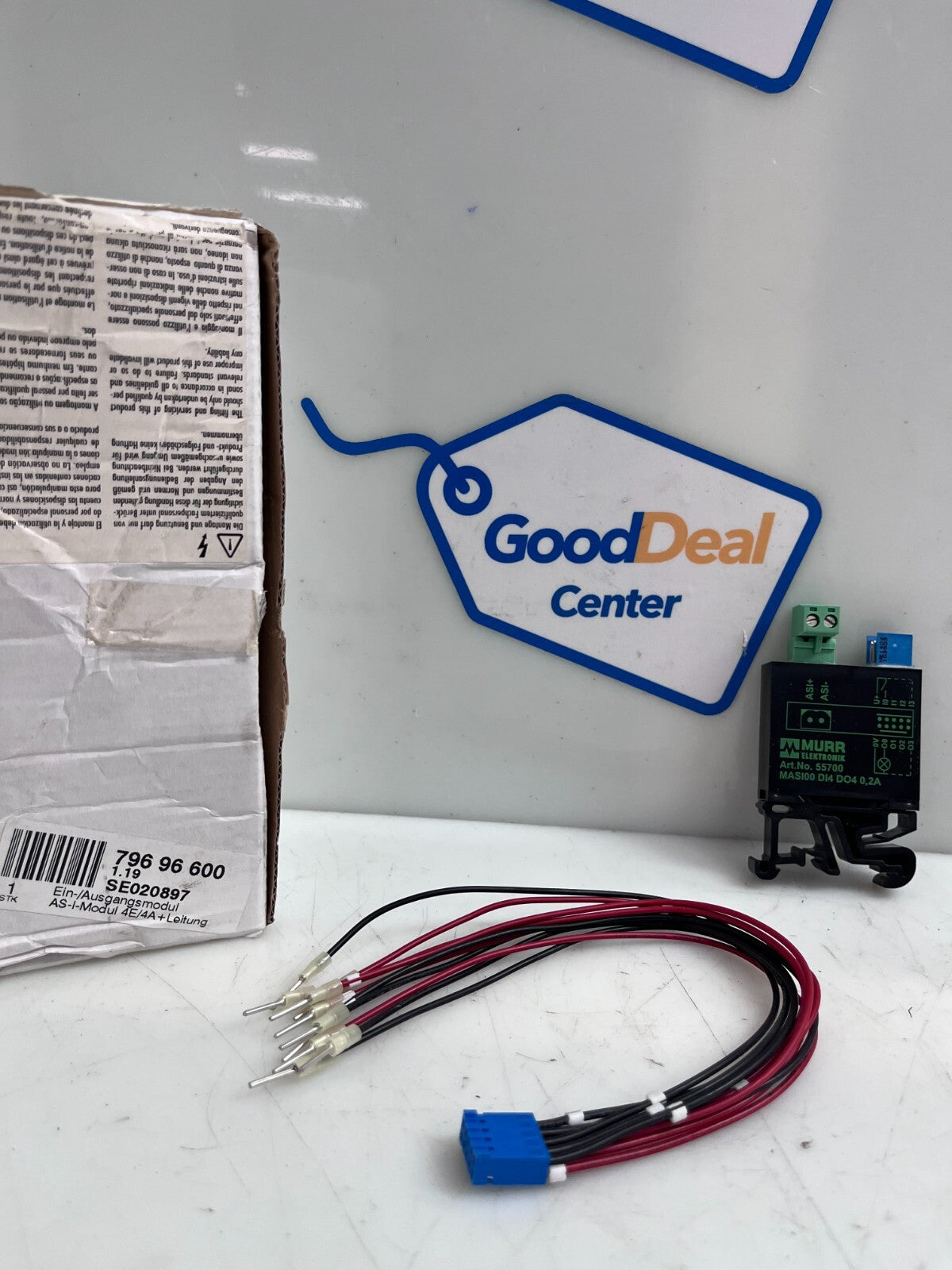

MURR Elektronik 55700 MAS100D14 I/O Module
MURR Elektronik 55700 MAS100D14 I/O Module
$121.41
FRENCH DETAILS :
CARACTÉRISTIQUES ÉLECTRIQUES | ALIMENTATION
| Tension de bus CC min. AS-Interface | 26,5 V |
|---|---|
| Tension de bus CC max. AS-Interface | 31,6 V |
| Consommation électrique max. port AS-i | 250 mA |
| Courant total max. | 0,2 A |
CARACTÉRISTIQUES ÉLECTRIQUES | ENTRÉE
| Résistant aux surcharges | oui |
|---|---|
| Protection anti courts-circuits | oui |
| Type input | pour contacteurs courants |
| Courant admissible max. | 0,2 A |
CARACTÉRISTIQUES ÉLECTRIQUES | SORTIE
| Temps de coupure en cas de court-circuit | 50 ms |
|---|---|
| Résistant aux surcharges | oui |
| Protection anti courts-circuits | oui |
| Courant de sortie max. par broche | 0,2 A |
COMMUNICATION INDUSTRIELLE | DONNÉES DE BUS
| Type de réglage d'adresse | Borne à fiche |
|---|
COMMUNICATION INDUSTRIELLE | AS-INTERFACE
| Profil (IO.ID.ID2) | S-7.F.F |
|---|
DIAGNOSTICS
| Diagnostic | Aucune tension |
|---|---|
| Diagnostic par LED | par module |
| Indicateur à LED | Connexion Ethernet/trafic de données |
CARACTÉRISTIQUES TECHNIQUES | INSTALLATION
| Section de raccordement min. | 0,2 mm² |
|---|---|
| Section de raccordement max. | 2,5 mm² |
INSTALLATION | RACCORDEMENT
| Type de raccordement | Bornes enfichables à vis |
|---|
PROTECTION DES APPAREILS | ÉLECTRIQUE
| Indice de protection (EN CEI 60529) | IP00 |
|---|
DONNÉES MÉCANIQUES | DONNÉES DE MONTAGE
| Mode de fixation | geschnappt |
|---|---|
| Suitable for mounting type | rail porteur, (EN 60715) |
| Hauteur | 43 mm |
| Largeur | 15 mm |
| Profondeur | 81 mm |
CARACTÉRISTIQUES ENVIRONNEMENTALES | CLIMATIQUE
| Température de service min. | 0 °C |
|---|---|
| Température de service max. | 55 °C |
| Température de stockage min. | -20 °C |
| Température de stockage max. | 70 °C |
