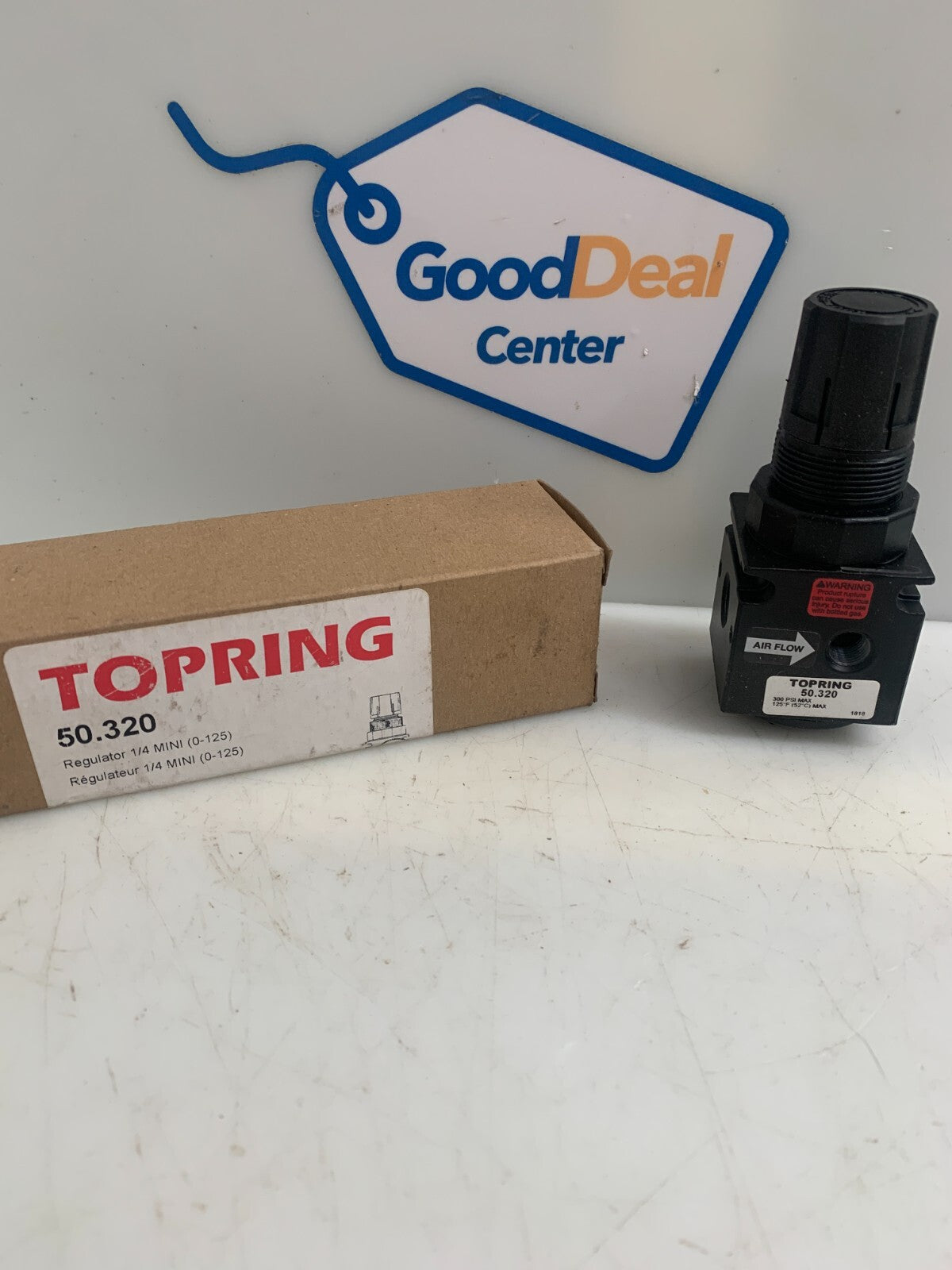

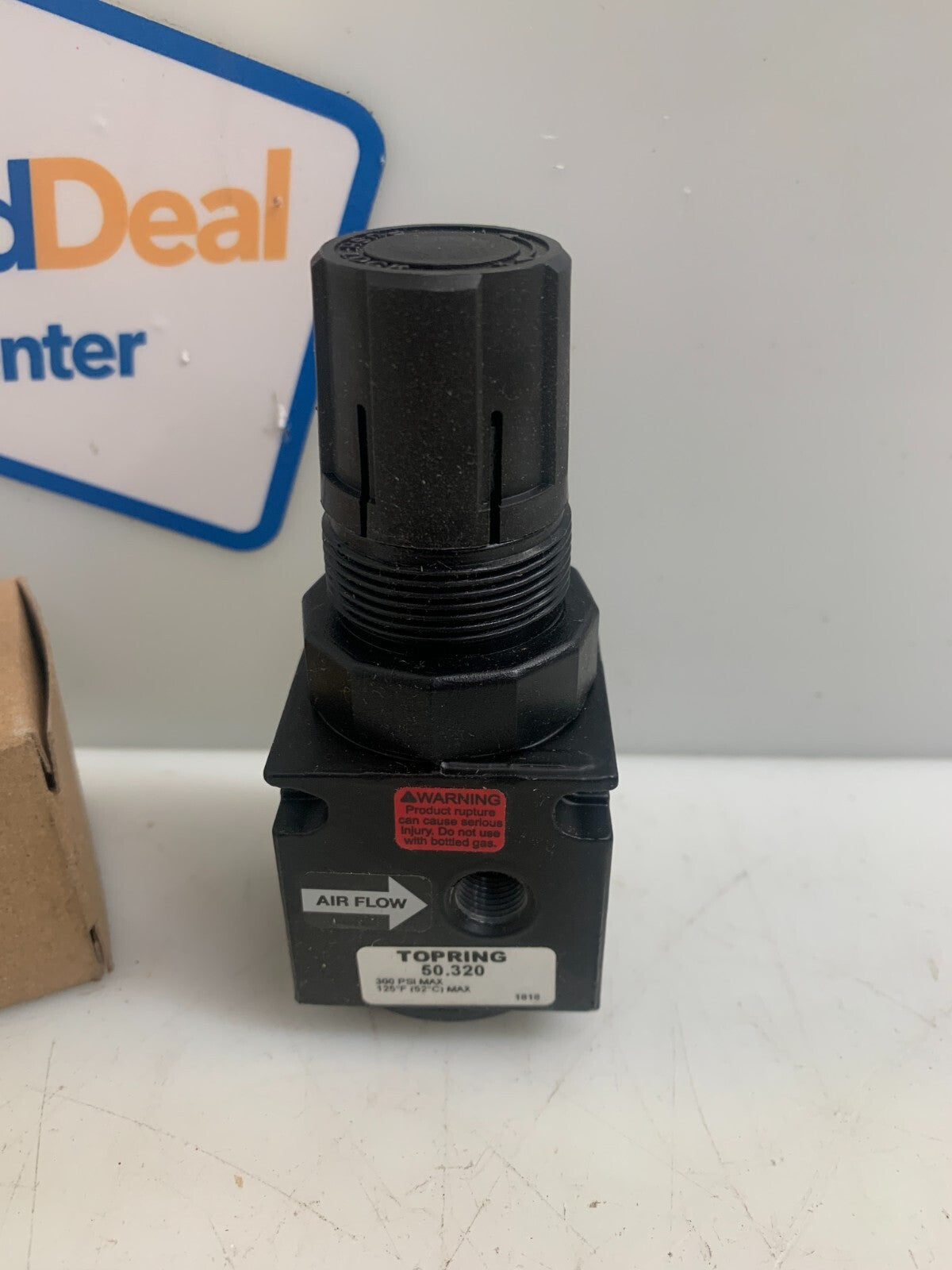

Regulator 1/4 (gauge mini (0-125 psi) modulair

Technical specifications and certifications

• Port Size: 1/4 (F) NPT
• Maximum Air Flow at 100 PSI: 40 SCFM
• Maximum Working Pressure: 300 PSI
• Temperature Range: 4 to 52 °C
• Working Pressure: 0-125 PSI
• Pressure Gauge Port Size: 1/8 (F) NPT
• Panel Mount Thread: 1-3/16 – 18 UNEF – 2B
• Panel Mount Opening: 1-1/4 in (3,2 cm)
• Replacement Gauge: 55.120

Material(s):
• Body: Zinc

Features and benefits

• Compact size
• High-flow capacity
• Push-pull Adjusting Knob
• Maintains constant downstream pressure

Operation and installation

INSTALLATION TIP
Assembly is simple using Allen key style screws and an O-ring
Units can be quickly and easily assembled and disassembled

WHERE TO INSTALL A REGULATOR
Install the regulator on each pipe where applications and air tools requires different working pressure
Always install the regulator downstream of a filter and upstream of a lubricator
Can be installed vertically or horizontally
Always install regulator with the arrows pointing to the tool or application
