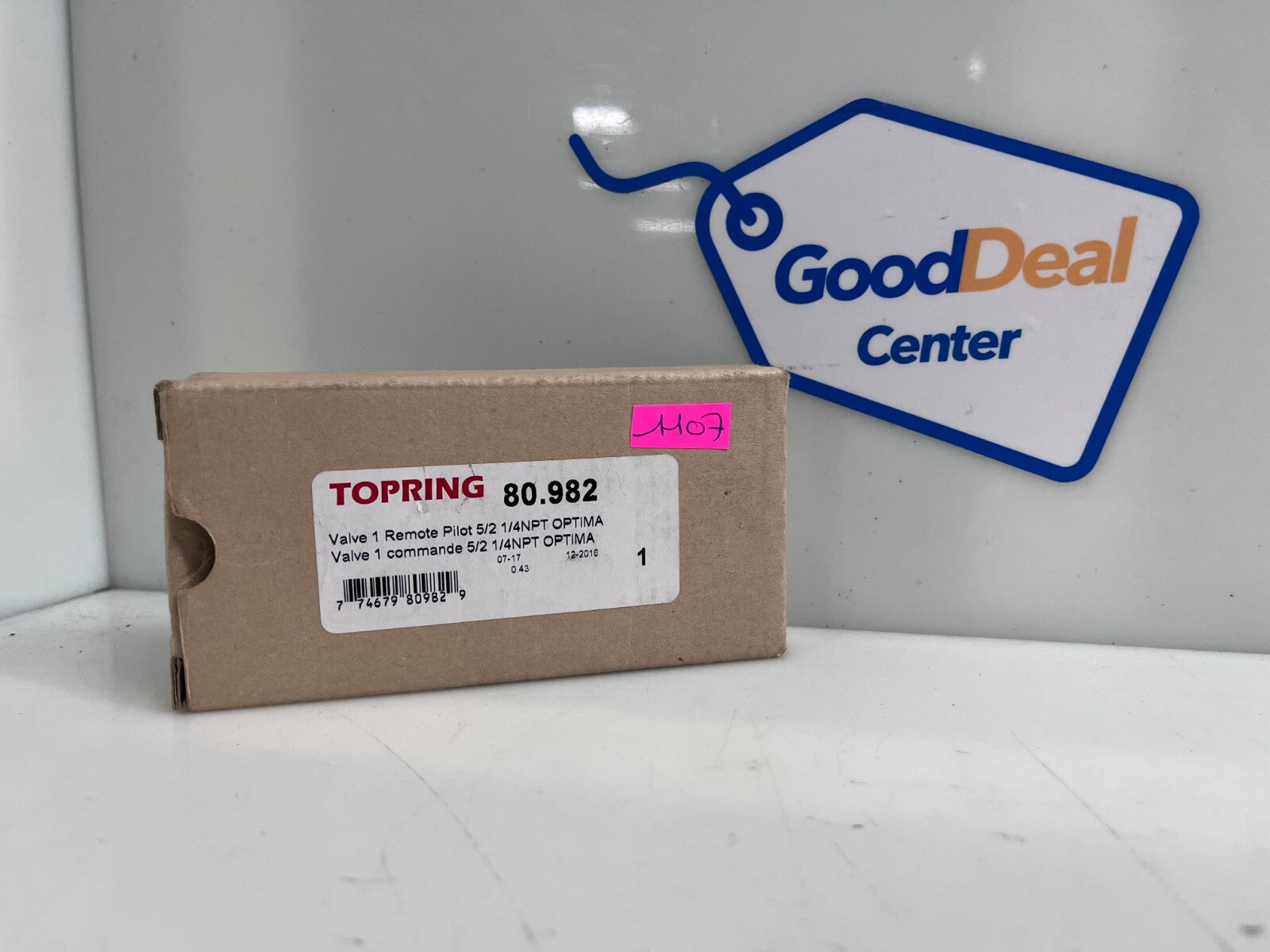

TOPRING 80.982 Valve 1 Remote Pilot 5/2 1/4NPT OPTIMA

Technical specifications and certifications

• Cv: 1.06
• Pilot Port: 1/4 NPT
• 5 Ways / 2 Positions
• Pilot Port: 1/8 NPT
• Return Type: Single remote pilot
• Manual Override: Push-Button
• Voltage Fluctuation: ± 10%
• Response Time M/Sec: = 25 M/S
• Maximum Cycles/Minute: 300
• Operating Pressure Range: 22 to 145 PSI
• Temperature Range: 5 to 60 °C

Material(s):
• Body, End Caps, and Manifold: Anodized Aluminum
• Seals: Oil resistant Rubber lip gaskets
• Spool: Aluminum
• Other Internal Parts: Stainless Steel, Brass, Aluminum

Features and benefits

• OPTIMA air control valves offer high flow performance and reliability
• Compact size
• High flow
• Quick response
• Highly reliable spool technology
• 3 and 5 WAYS, 2 and 3 positions
• Designed for in-line or bar manifolding
• A “maintained” pressure signal shifts single pilot valve. When the signal is removed, the valve returns to its normal positions
