BS57HB76-03 CNC Router Stepper Motor
3 Axis CNC Stepper Motor Model: BS57HB76-03
Stepping angle: 1.8°±5%
Current: 3A
Phase: 2 phase
Motor lines: 6 lines
Max static torque: 1.35N.m
Diameter for the center shaft: 6.35mm
Body length: 76mm
Shaft length: 21mm
Temperature rise: 80℃ Max
Ambient temperature: -20℃~+50℃
Insulation resistance: 100MΩMin 500VDC
Dielectric strength: 500V AC 1minute
Allowable radial load: 0.06mm Max (450g load)
Allowable thrust load: 0.08mm Max (450g load)

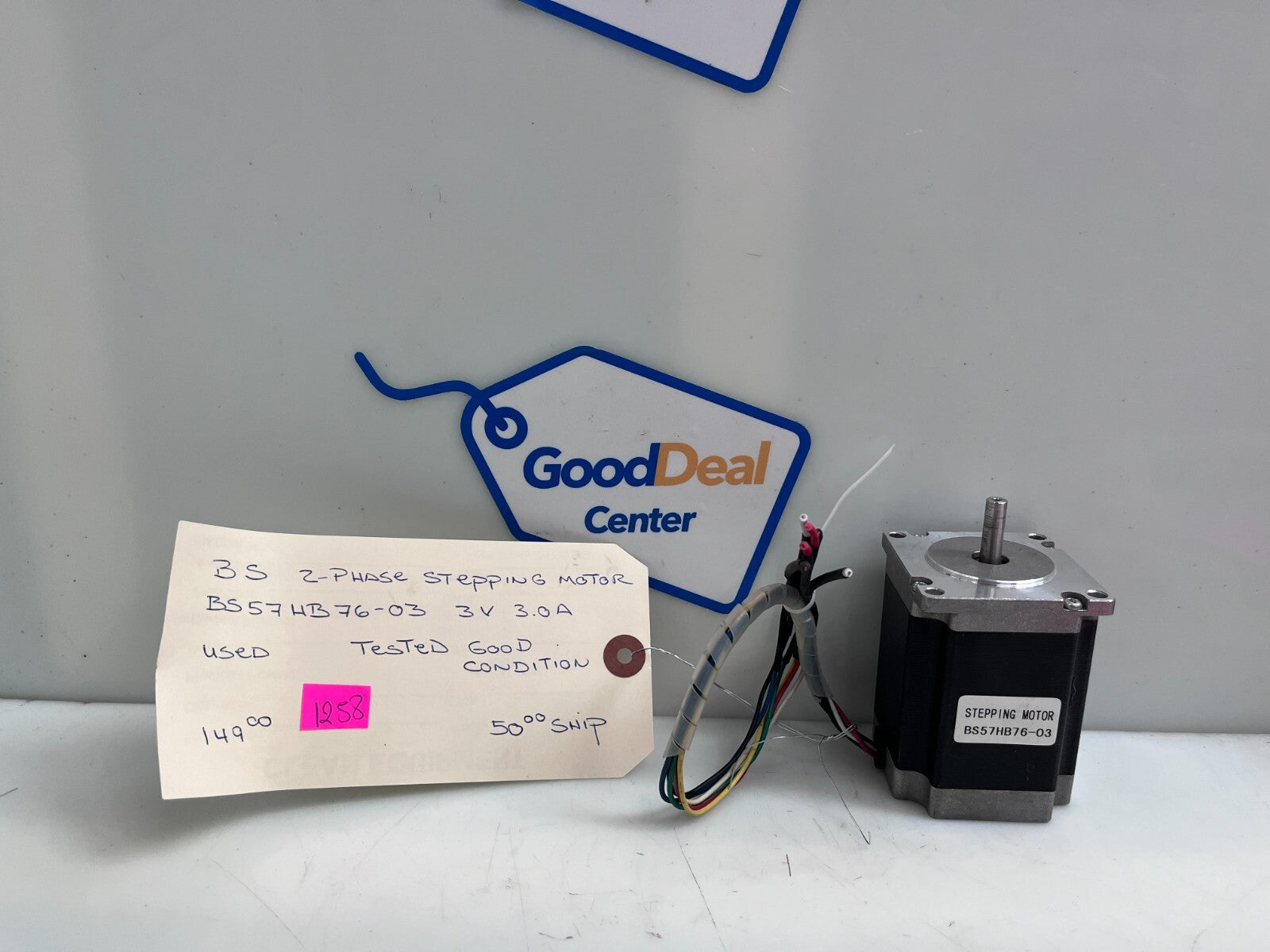

Unknown Brand BS57HB76-03 CNC Router Stepper Motor
$203.16
for 3 Axis CNC Router Machine
CNC stepper motor kit are commonly recommended for applications that are cost-sensitive and low maintenance. This BS57HB76-03 2 phase step motor cnc kit is used for CNC Router Machine and CNC laser machine and CNC Plasma cutting machine.
3 Axis CNC Stepper Motor Model: BS57HB76-03
Stepping angle: 1.8°±5%
Current: 3A
Phase: 2 phase
Motor lines: 6 lines
Max static torque: 1.35N.m
Diameter for the center shaft: 6.35mm
Body length: 76mm
Shaft length: 21mm
Temperature rise: 80℃ Max
Ambient temperature: -20℃~+50℃
Insulation resistance: 100MΩMin 500VDC
Dielectric strength: 500V AC 1minute
Allowable radial load: 0.06mm Max (450g load)
Allowable thrust load: 0.08mm Max (450g load)
