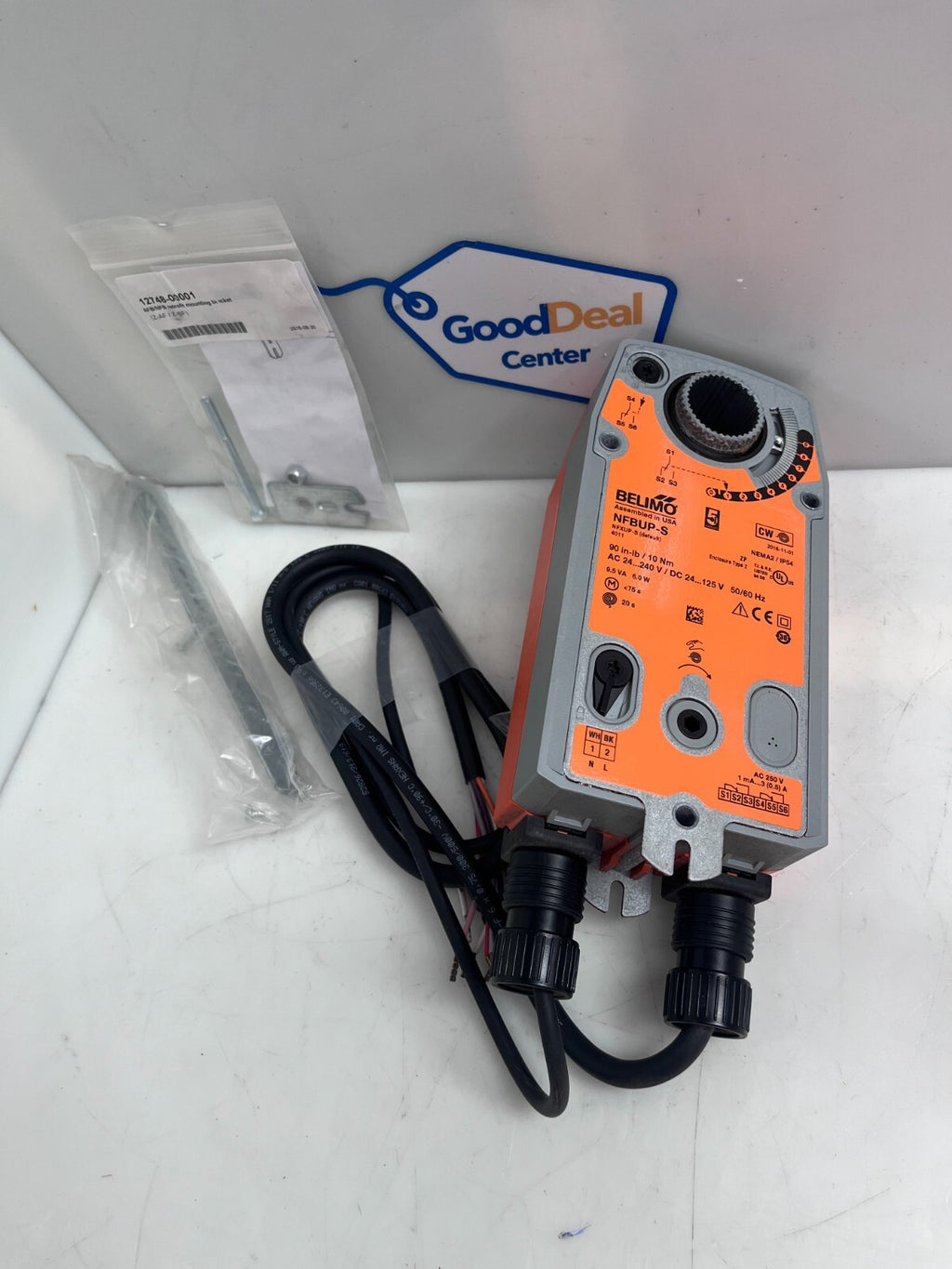

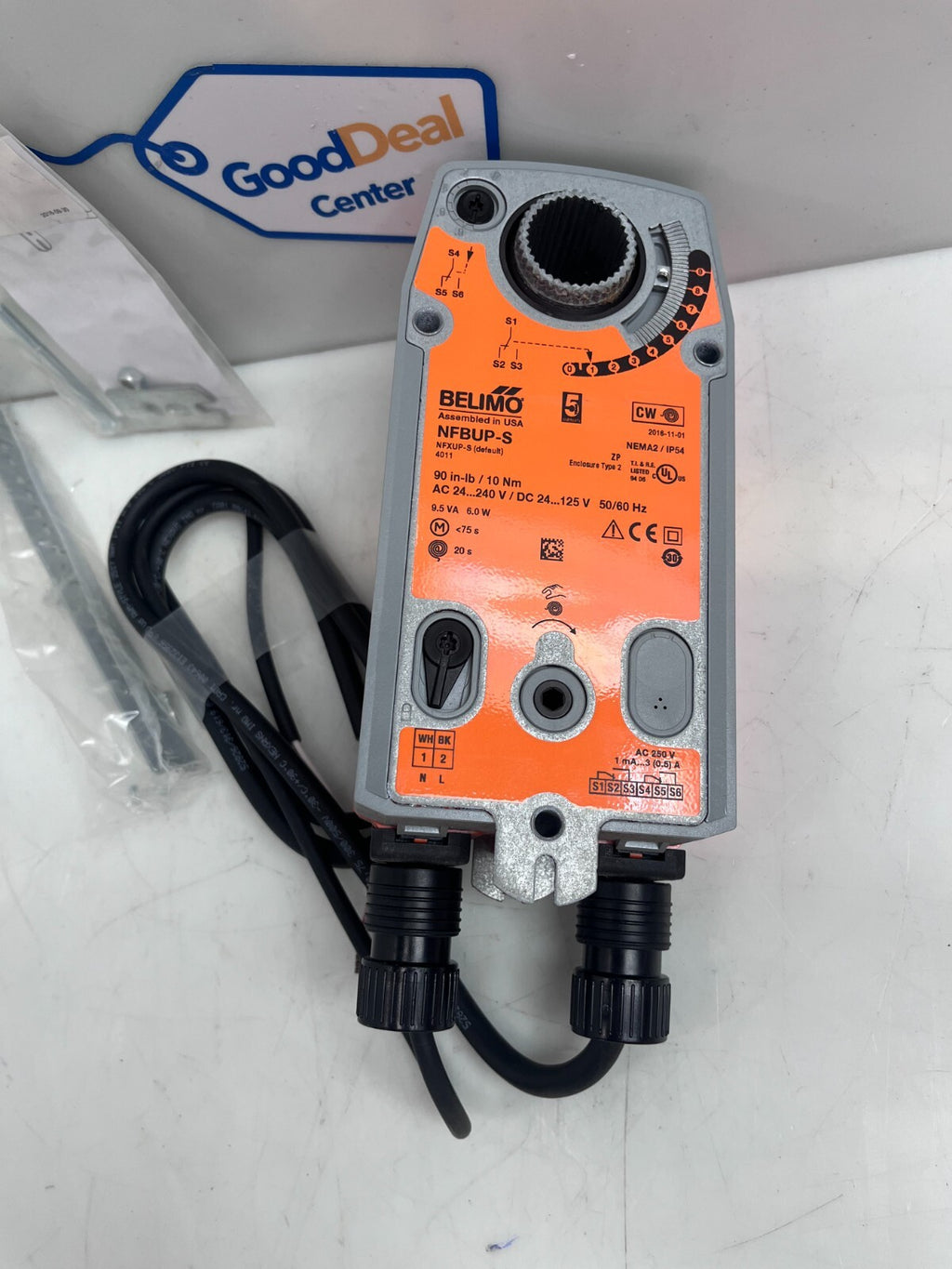

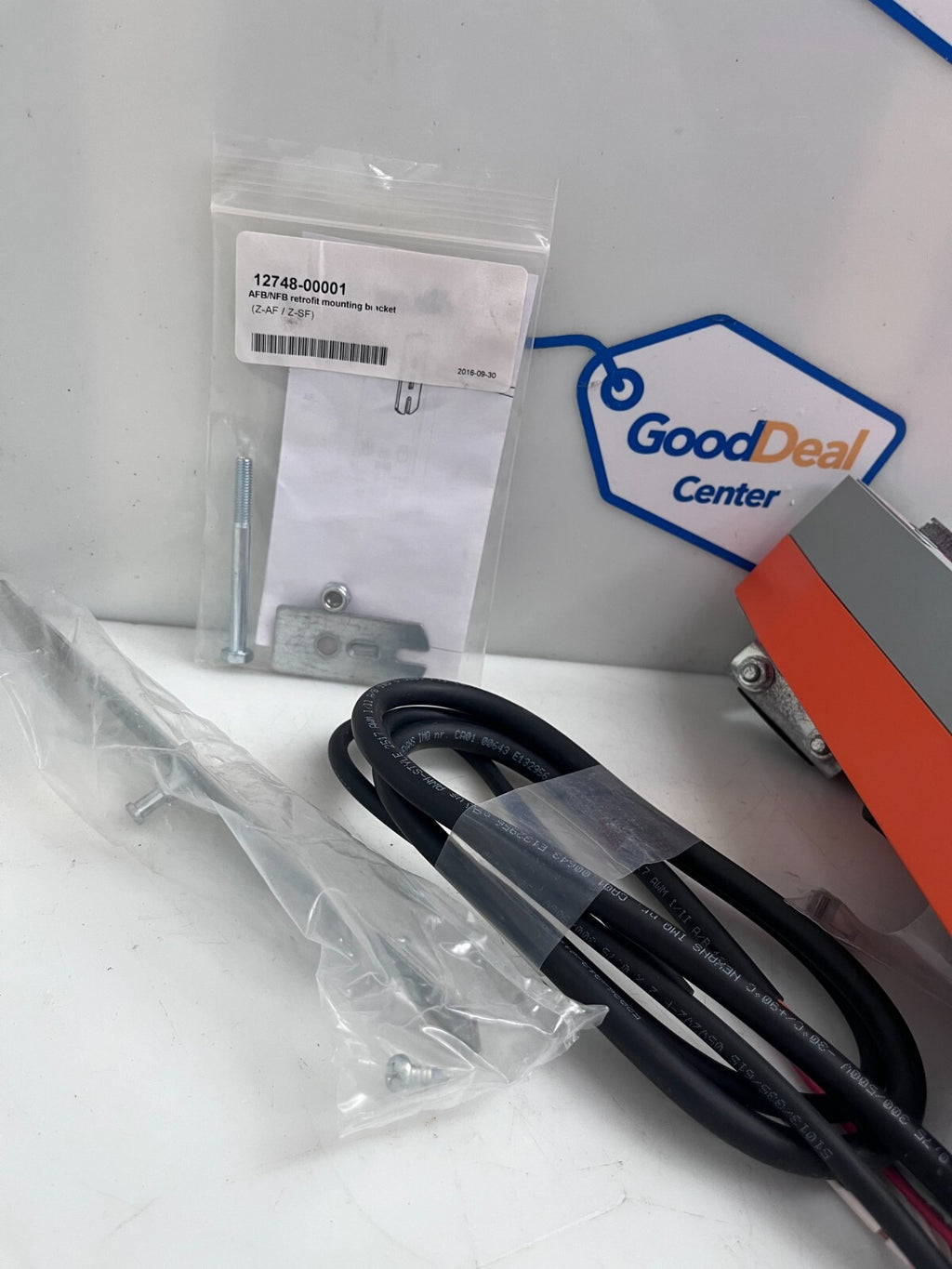

BELIMO NFBUP-S Fail Safe Actuator Spring Return NFXUP-S 40110
  • BELIMO NFBUP-S Fail Safe Actuator Spring Return NFXUP-S 40110
  • BELIMO NFBUP-S Fail Safe Actuator Spring Return NFXUP-S 40111
  • BELIMO NFBUP-S Fail Safe Actuator Spring Return NFXUP-S 40112
  • BELIMO NFBUP-S Fail Safe Actuator Spring Return NFXUP-S 40110
  • BELIMO NFBUP-S Fail Safe Actuator Spring Return NFXUP-S 40111
  • BELIMO NFBUP-S Fail Safe Actuator Spring Return NFXUP-S 40112
BELIMO NFBUP-S Fail Safe Actuator Spring Return NFXUP-S 4011

BELIMO NFBUP-S Fail Safe Actuator Spring Return NFXUP-S 4011

$357.00

Country of Origin: United States

Brand: Belimo

Type: Spring Return Damper Actuator

Unit Type: Unit

Model: NFBUP-S

MPN: NFBUP-S,NFXUP-S 4011

Unit Quantity: 1

Item Weight: 10 lb

BELIMO NFBUP-S Fail Safe  Actuator Spring Return NFXUP-S 4011

Specifications

Voltage AC/DC
AC 24...240 V / DC 24...125 V
Power Consumption (Running)
6 W
Power Consumption (Holding)
2.5 W
Power Consumption For Wire Sizing
9.5 VA
Auxiliary Switches
2x SPDT
Torque
90 in-lb [10 Nm]
Control Type
On/Off
Direction Of Motion Motor
selectable by ccw/cw mounting
Direction of Rotation (Fail-Safe)
Reversible with cw/ccw mounting
Manual Override
5 mm hex crank (3/16" Allen), supplied
Angle of Rotation
95
Running Time (Motor)
75 s / 90°
Running Time (Fail-safe)
<20 s
Protection category
IP54
Degree Of Protection NEMA
NEMA 2
Enclosure Type
UL Enclosure Type 2
Ambient Temperature
-22...122°F [-30...50°C]
